LFXTAL026382

Overview

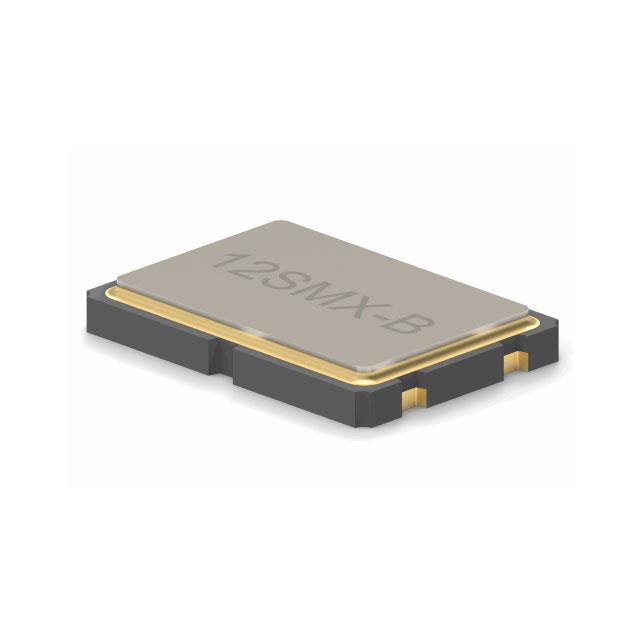

The LFXTAL026382 is a surface-mount quartz crystal resonator from the IQD Frequency Products 12SMX-B series. It operates at a fundamental frequency of 11.0592 MHz with a frequency tolerance of ±30 ppm and stability of ±50 ppm. The component features a load capacitance of 16 pF and an equivalent series resistance (ESR) of 60 Ohms. Housed in a 4-SMD, no-lead package measuring 7.00 mm x 5.00 mm with a maximum height of 1.40 mm, it supports operation within a temperature range of -20°C to +70°C.

Feature Summary

• Fundamental mode operation for precise timing applications
• Compact 4-SMD no-lead surface mount packaging
• Designed for industrial temperature environments

Applications

• Microcontroller clock sources
• Communication interface timing
• Industrial control systems

Procurement Notes

Verify the specific ordering suffix against official IQD documentation to ensure correct frequency tolerance and packaging configuration. Confirm that the required load capacitance matches the target circuit design specifications before procurement to avoid performance deviations.

Selection Notes

Select this component when a stable 11.0592 MHz reference is required in a compact surface-mount form factor. Ensure the application environment remains within the specified -20°C to +70°C operating range and that the circuit impedance aligns with the 16 pF load capacitance requirement.

Part Context

This part belongs to the 12SMX-B series of quartz crystals manufactured by IQD Frequency Products. The series provides standard frequency options in small outline packages suitable for automated assembly processes in consumer and industrial electronics manufacturing.

Replacement Considerations

Cross-reference with other 11.0592 MHz SMD crystals from manufacturers such as Abracon or NDK if supply constraints exist. Verify dimensional compatibility and electrical parameter equivalence, specifically ESR and load capacitance, before substituting.
