Product Detailed Parameters

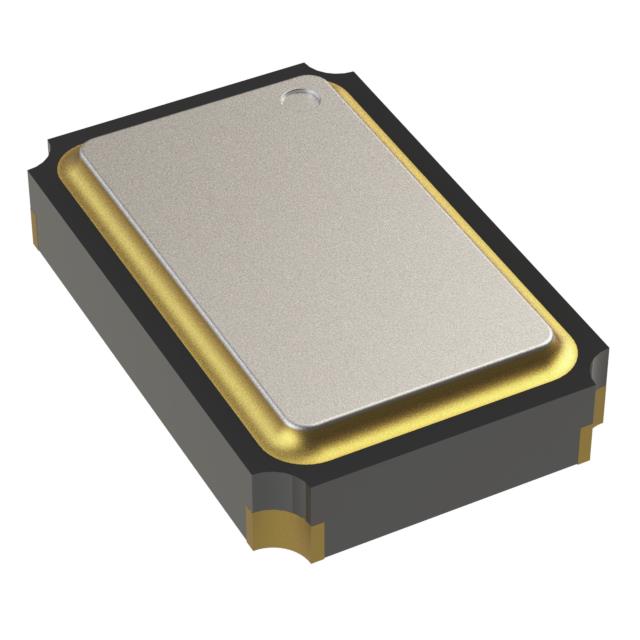

- Description：CRYSTAL 20.0000MHZ 18PF SMD
- Series：CFPX-104
- Mfr：IQD Frequency Products
- Package：Bulk
- Type：MHz Crystal
- Frequency：20 MHz
- Frequency Stability：±50ppm
- Frequency Tolerance：±20ppm
- Load Capacitance：18pF
- ESR (Equivalent Series Resistance)：40 Ohms
- Operating Mode：Fundamental
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max)：0.039" (1.00mm)
Download product information
Overview
The LFXTAL056808BULK is a quartz crystal resonator manufactured by IQD Frequency Products, designed for surface-mount applications. It operates at a fundamental frequency of 20 MHz with a frequency tolerance of ±20 ppm and stability of ±50 ppm. The component features an 18 pF load capacitance and a maximum equivalent series resistance (ESR) of 40 Ohms. It utilizes a 4-SMD, no-lead package measuring 5.00 mm in length, 3.20 mm in width, and 1.00 mm in height. The device supports a wide operating temperature range from -40°C to +85°C and complies with RoHS3 standards.
Feature Summary
- Fundamental mode operation ensures precise timing performance.
- Compact 4-SMD footprint facilitates automated surface-mount assembly.
- Wide industrial temperature rating supports diverse environmental conditions.
Applications
- Microcontroller clock generation
- Communication interface synchronization
- Industrial control systems
Procurement Notes
Verify the specific ordering suffix to confirm packaging configuration, as bulk tape specifications may vary. Ensure the selected variant matches the required load capacitance and frequency tolerance for the target circuit design. Confirm compliance with current environmental directives such as RoHS3 before finalizing procurement orders.
Selection Notes
Select this component when a 20 MHz reference signal is required for surface-mount designs. The 18 pF load capacitance must align with the oscillator circuit's input capacitance requirements. Consider the 40 Ohm ESR limit to ensure adequate drive level handling within the application circuit.
Part Context
This part belongs to the CFPX-104 series of SMD crystals from IQD Frequency Products. It represents a standard solution for general-purpose timing applications requiring high reliability and compact dimensions. The product line supports various frequencies and packages to meet diverse electronic design needs.
Replacement Considerations
Direct substitutes include other 20 MHz SMD crystals with matching 18 pF load capacitance and similar physical dimensions. Verify that alternative components meet the same ±20 ppm tolerance and -40°C to +85°C temperature range specifications.
FAQ
What is the maximum equivalent series resistance for this crystal?
The maximum ESR is specified as 40 Ohms.
Does this component support through-hole mounting?
No, the LFXTAL056808BULK is designed exclusively for surface-mount installation using a 4-SMD, no-lead package.
