LFXTAL071269

Overview

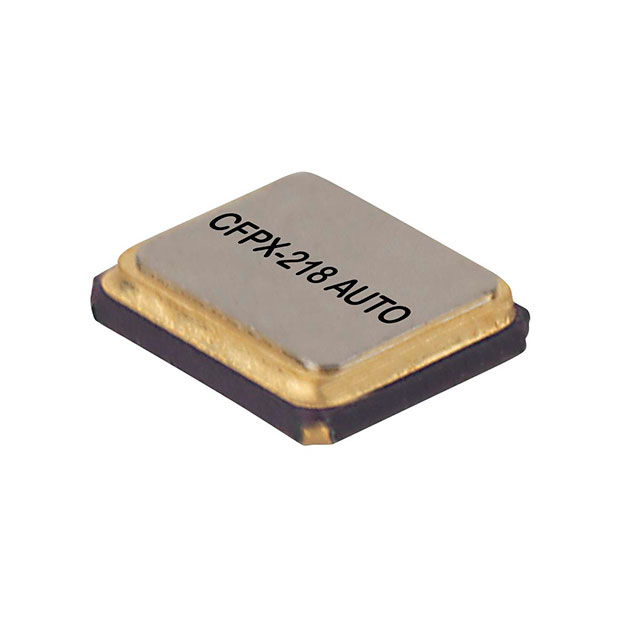

The LFXTAL071269 is a fundamental parallel resonance quartz crystal manufactured by IQD Frequency Products. It operates at a nominal frequency of 24.576 MHz with a load capacitance of 10 pF. The component utilizes a 4-SMD, No Lead package measuring 2.50 mm in length, 2.00 mm in width, and 0.60 mm in maximum height. It is supplied in Tape & Reel packaging.

Feature Summary

• Fundamental parallel resonance operation mode
• Surface mount SMD form factor for automated assembly
• Quartz material construction for stable oscillation

Applications

• Clock signal generation in digital circuits
• Microcontroller oscillator inputs
• Communication interface timing references

Procurement Notes

Verify the specific frequency tolerance and stability specifications against the official IQD datasheet prior to integration. Confirm that the 10 pF load capacitance aligns with the target circuit design requirements. Ensure the 4-SMD package dimensions are compatible with the printed circuit board footprint and manufacturing processes.

Selection Notes

Select this component when a precise 24.576 MHz reference is required in a compact surface-mount layout. Consider the 10 pF load capacitance requirement for oscillator circuit compatibility. Evaluate the physical constraints of the 2.50 x 2.00 mm package against available board space and thermal management needs.

Part Context

This part belongs to the general quartz crystal product line from IQD Frequency Products. It serves as a passive frequency control element within electronic systems. The manufacturer provides various other frequencies and package sizes within their portfolio to support diverse application requirements.

Replacement Considerations

Direct substitutes must match the 24.576 MHz frequency, 10 pF load capacitance, and 4-SMD (2.5x2) package dimensions. Verify equivalent electrical parameters such as ESR and frequency tolerance before substitution.
