LFXTAL073264

Overview

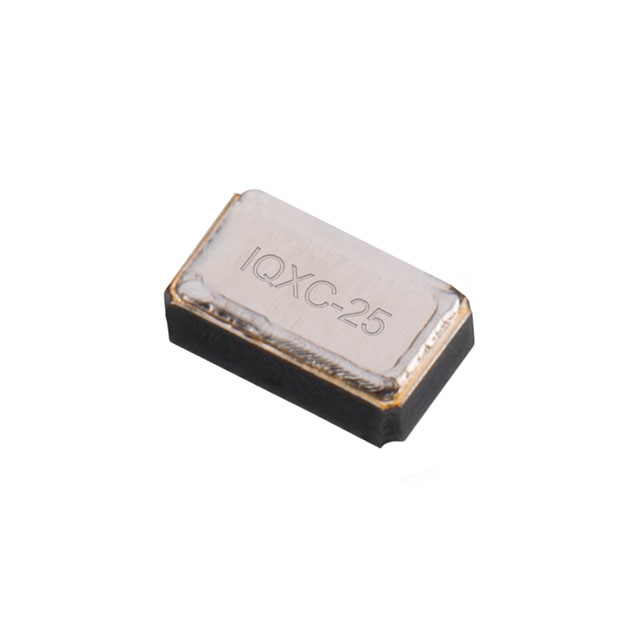

LFXTAL073264 is a quartz crystal resonator manufactured by IQD Frequency Products. It operates at a nominal frequency of 32.768 kHz and utilizes a fundamental oscillation mode. The component features a surface-mount package with dimensions of 2 mm x 1.2 mm. It has a load capacitance of 4 pF and offers a frequency tolerance of ±20 ppm.

Feature Summary

• Compact surface-mount design suitable for space-constrained applications
• Fundamental mode operation for stable timing reference
• Low profile package configuration

Applications

• Real-time clock circuits
• Microcontroller system clocks
• Portable electronic devices

Procurement Notes

Verify the specific package dimensions and electrical parameters against the official IQD Frequency Products datasheet before integration. Confirm that the 4 pF load capacitance matches the target circuit requirements to ensure accurate frequency performance.

Selection Notes

Select this component when a small footprint is required for low-frequency timing applications. Ensure the operating environment supports the specified temperature range and that the circuit impedance aligns with the 4 pF load capacitance specification.

Part Context

This part belongs to the standard quartz crystal category within the IQD Frequency Products portfolio. It serves as a passive frequency-determining element, distinct from active oscillators or temperature-compensated variants, providing basic timing stability for digital systems.

Replacement Considerations

Direct substitutes must match the 32.768 kHz frequency, 4 pF load capacitance, and 2 mm x 1.2 mm SMD package dimensions. Verify equivalent frequency tolerance and drive level specifications to maintain system timing integrity.
