LFXTAL073664

Overview

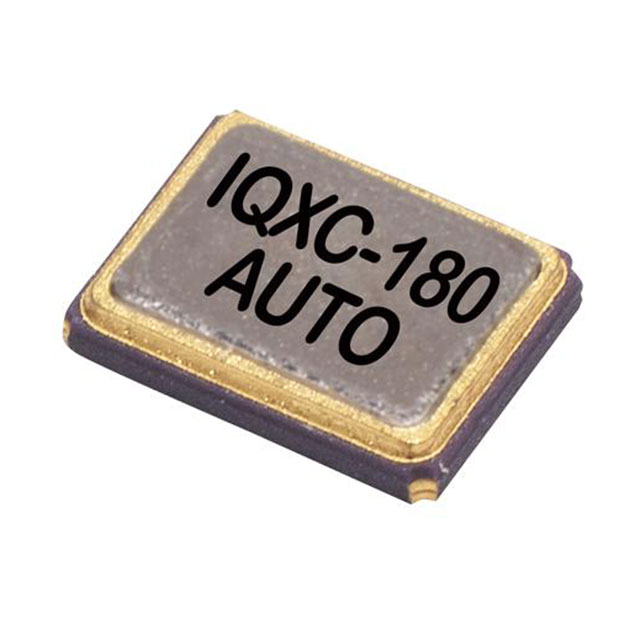

The LFXTAL073664 is a quartz crystal from the IQXC-180 AUTO Series. It operates at a nominal frequency of 12 MHz with a load capacitance of 8 pF. The component supports frequency tolerances of 50 ppm and 100 ppm. It utilizes a surface-mount package measuring 3.2 mm by 2.5 mm. The device is RoHS compliant.

Feature Summary

• Automotive-grade reliability within the IQXC-180 AUTO Series
• Surface-mount design for automated assembly
• RoHS compliant construction

Applications

• Automotive electronic systems
• Clock signal generation in microcontrollers
• Timing reference for communication interfaces

Procurement Notes

Verify the specific tolerance variant required, as the part number covers both 50 ppm and 100 ppm options. Confirm the exact package dimensions match the target footprint. Ensure the application environment meets the series specifications. Check current availability status through authorized channels. Validate compliance requirements against project standards.

Selection Notes

Select this component when an automotive-grade 12 MHz timing source is needed. The 8 pF load capacitance must match the oscillator circuit design. Consider the 3.2 x 2.5 mm size for space-constrained layouts. Evaluate the tolerance requirement based on system stability needs. Compare against other IQD crystal series for optimal fit.

Part Context

This part belongs to the IQXC-180 AUTO Series, designed for automotive applications. It complements other IQD frequency products like oscillators and resonators. The series focuses on robust performance in vehicle electronics. Related parts include similar crystals with different frequencies or packages.

Replacement Considerations

Direct substitutes are not explicitly confirmed in public data. Cross-reference with other IQD 12 MHz SMD crystals. Verify electrical parameters before substitution. Ensure package compatibility for replacement.
