LFXTAL082071REEL

Overview

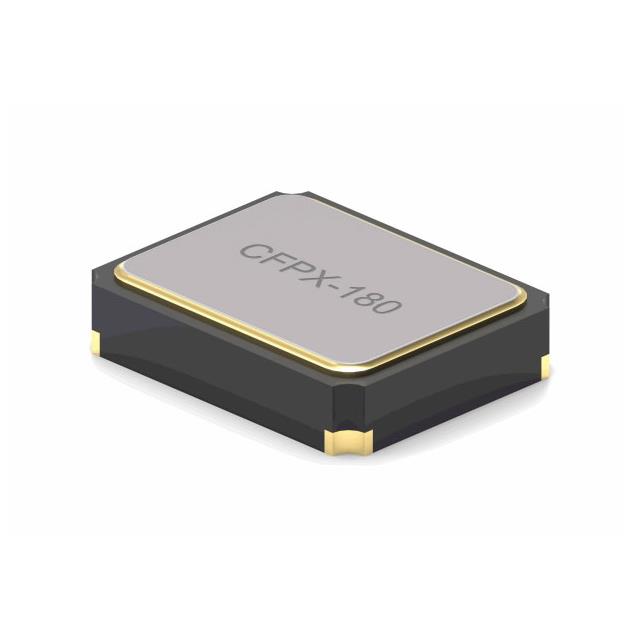

The LFXTAL082071REEL is a quartz crystal resonator manufactured by IQD Frequency Products. It operates at a nominal frequency of 16 MHz with a tolerance of ±10 ppm and stability of ±20 ppm. The component features a load capacitance of 8 pF and an equivalent series resistance (ESR) of 70 Ohms. It utilizes a surface-mount package measuring 3.2 mm x 2.5 mm with a height of 0.8 mm. The device supports a maximum operating temperature of +85°C and accepts a drive level of 100 uW. It is supplied in reel packaging.

Feature Summary

• Surface-mount quartz crystal design for automated assembly
• High frequency stability within automotive-grade tolerances
• Compact 3.2mm x 2.5mm footprint for space-constrained layouts

Applications

• Automotive electronic systems requiring precise timing
• Industrial control circuits needing stable clock sources
• Communication equipment utilizing 16 MHz reference frequencies

Procurement Notes

Verify the specific suffix REEL against official IQD documentation to confirm reel quantity and tape specifications. Ensure the 16 MHz frequency and 8 pF load capacitance match the target circuit design requirements. Confirm that the 70 Ohm ESR value is compatible with the oscillator input impedance. Check for any recent part number revisions or obsolescence notices from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when a 16 MHz signal with ±10 ppm initial tolerance is required. The 8 pF load capacitance must align with the host oscillator circuit's capacitive load. Consider the 3.2mm x 2.5mm SMD package for board space optimization. Verify the +85°C maximum operating temperature meets the environmental conditions of the application. Ensure the 100 uW drive level does not exceed the crystal's mechanical limits.

Part Context

This part belongs to the IQD LFXTAL series of quartz crystals, designed for general-purpose and automotive applications. The series offers various frequencies and packages, with this specific model providing a standard 16 MHz output. IQD Frequency Products, now part of Wurth Elektronik, provides these components for reliable timing solutions across industrial and consumer electronics sectors.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided source material. Cross-reference with other 16 MHz, 8 pF, 3.2x2.5mm crystals if availability is an issue, ensuring electrical parameters match exactly.
