Product Detailed Parameters

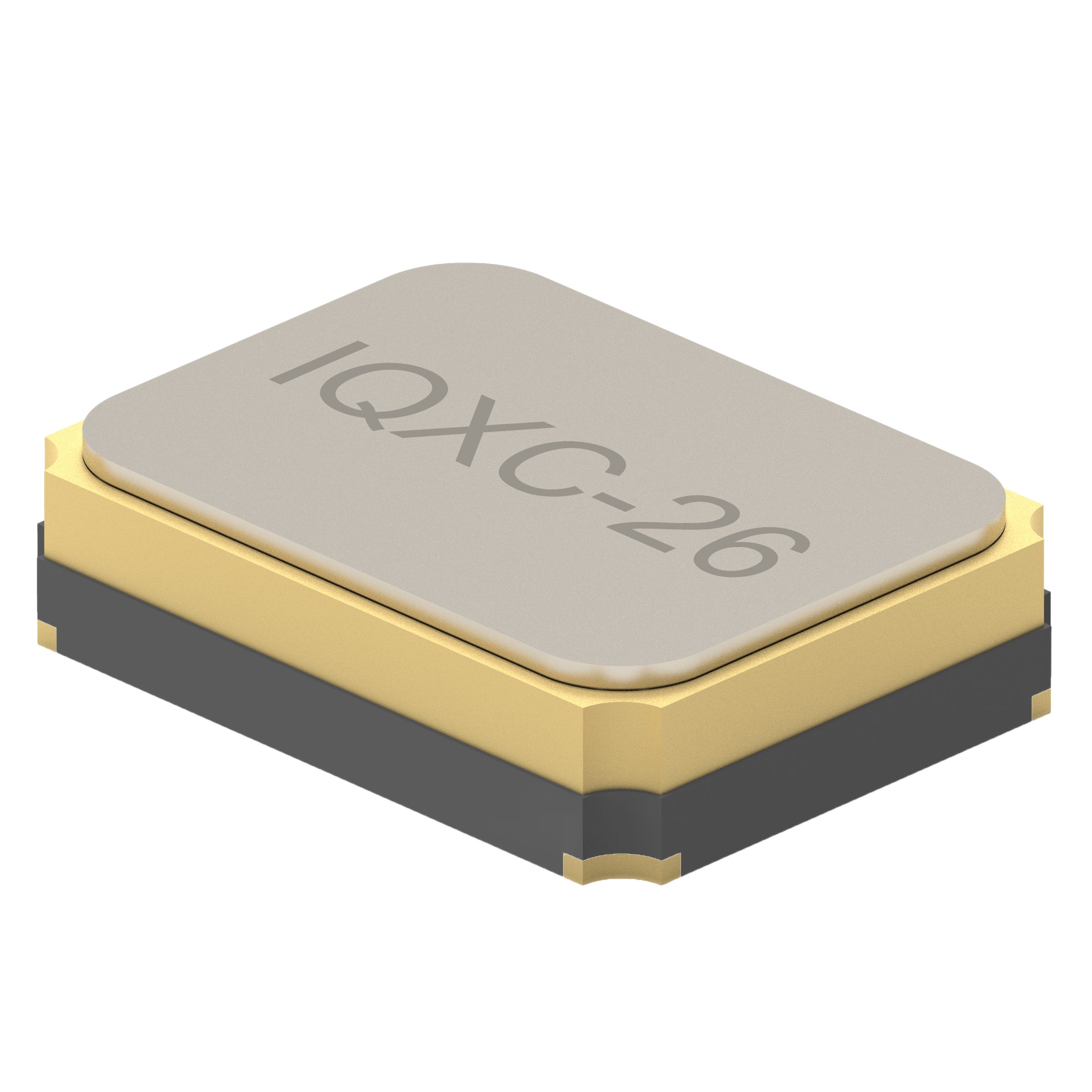

- Description：IQXC-26 1.6 X 1.2MM 32.0MHZ
- Series：IQXC-26
- Mfr：IQD Frequency Products
- Package：Strip
- Type：MHz Crystal
- Frequency：32 MHz
- Frequency Stability：±15ppm
- Frequency Tolerance：±10ppm
- Load Capacitance：8pF
- ESR (Equivalent Series Resistance)：60 Ohms
- Operating Mode：Fundamental
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Supplier Device Package：-
- Size / Dimension：0.063" L x 0.047" W (1.60mm x 1.20mm)
- Height - Seated (Max)：0.018" (0.45mm)
Download product information
Overview
The LFXTAL090552 is a fundamental quartz crystal from the IQXC-26 series, manufactured by IQD Frequency Products. It operates at a nominal frequency of 32 MHz with a frequency tolerance of ±10 ppm and stability of ±15 ppm. The component utilizes an 8 pF load capacitance and features a maximum equivalent series resistance (ESR) of 60 Ohms. Designed for surface-mount applications, it is housed in a compact 4-SMD, No Lead package measuring 1.6 mm x 1.2 mm. The device supports an operating temperature range from -40 °C to +85 °C, ensuring reliable performance in various electronic environments.
Feature Summary
- Fundamental mode quartz crystal operation
- Compact 1.6mm x 1.2mm surface-mount footprint
- Wide industrial temperature range capability
Applications
- Microcontroller clock sources
- Communication module timing
- Embedded system oscillators
Procurement Notes
Verify the specific package variant and lead-free status against the manufacturer's latest datasheet before procurement. Ensure that the load capacitance requirements of the target circuit match the 8 pF specification of the LFXTAL090552. Confirm compliance with RoHS directives if required for the final assembly process.
Selection Notes
Select this component when a small form factor is critical for PCB layout constraints. The 32 MHz frequency is suitable for standard digital logic and microcontroller operations. Consider the ±10 ppm tolerance for applications requiring moderate frequency accuracy without the cost of higher-grade oscillators.
Part Context
This part belongs to the IQXC-26 series of ultra-small quartz crystals. The series is designed for space-constrained portable electronics and high-density circuit boards. IQD Frequency Products specializes in providing precise timing solutions for global electronics manufacturing.
Replacement Considerations
Cross-reference with other 32 MHz SMD crystals having similar dimensions (1.6x1.2mm), 8pF load capacitance, and ±10ppm tolerance. Verify pin compatibility and electrical parameters such as ESR and drive level before substitution.
