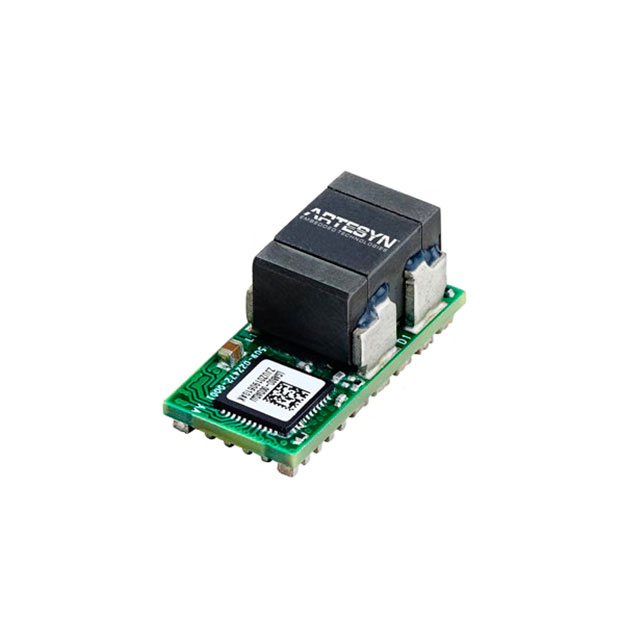

LGA80D-00DADJJ

LGA80D-00DADJJ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CNVRTR 0.6-5.2V 0.6-5.2V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for LGA80D-00DADJJ

• Description：DC DC CNVRTR 0.6-5.2V 0.6-5.2V
• Series：LGA80D
• Mfr：ARTESYN / Advanced Energy
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module, Digital
• Number of Outputs：2
• Voltage - Input (Min)：7V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.6 ~ 5.2V
• Voltage - Output 2：0.6 ~ 5.2V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：40A, 40A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95.50%
• Mounting Type：Surface Mount
• Package / Case：28-SMD Module
• Size / Dimension：1.00" L x 0.50" W x 0.48" H (25.4mm x 12.7mm x 12.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for LGA80D-00DADJJ
