LGJ12565TS-471MR70-H

$5.24

Description：FIXED IND 470UH 750MA 770MOHM SM
Series：LGJ
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1ea732e73c59 Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LGJ12565TS-471MR70-H is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 470UH 750MA 770MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LGJ12565TS-471MR70-H

Description：FIXED IND 470UH 750MA 770MOHM SM
Series：LGJ
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：470 µH
Tolerance：±20%
Current Rating (Amps)：750 mA
Current - Saturation (Isat)：700mA
Shielding：Shielded
DC Resistance (DCR)：770mOhm
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：1 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)：0.256" (6.50mm)
Features：-

Fixed Inductors datasheet and documents for LGJ12565TS-471MR70-H

LGJ12565TS-471MR70-H

Fixed Inductors Overview

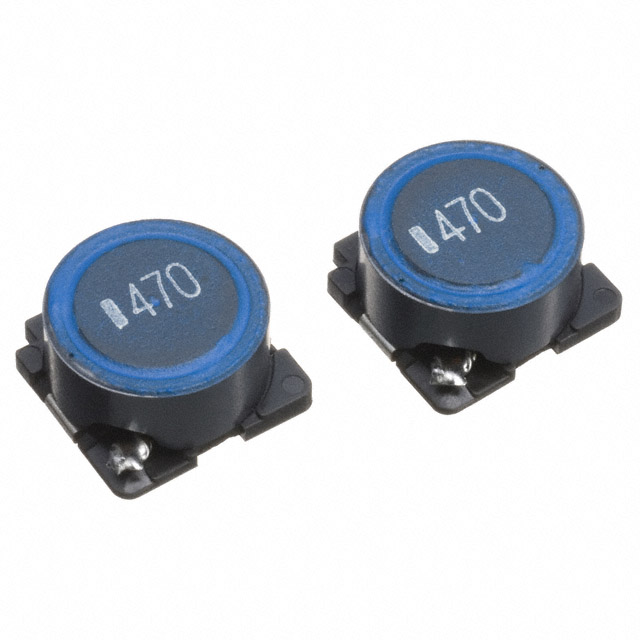

The LGJ12565TS-471MR70-H is a surface-mount power inductor from TDK's LGJ series. It features a shielded drum core design with ferrite material, ensuring low electromagnetic interference. The component provides an inductance of 470 µH with a tolerance of ±20%. It supports a maximum DC current of 750 mA and has a maximum DC resistance of 770 mOhms. The saturation current is rated at 1.2 A. Operating within a temperature range of -40°C to +125°C, it meets AEC-Q200 automotive qualification standards.

Fixed Inductors Feature Summary

Shielded drum core construction minimizes magnetic flux leakage
AEC-Q200 qualified for automotive reliability requirements
Ferrite core material ensures stable performance under high temperatures

Fixed Inductors Applications

Automotive electronic circuits
Power supply filtering applications
DC-DC converter stages

Fixed Inductors Procurement Notes

This component is officially listed as End-of-Life (EOL) by the manufacturer. Availability is restricted, and sourcing may require checking limited stock or secondary markets. Verify the specific ordering suffix and package type against current inventory lists before procurement. Confirm that the EOL status applies to the exact part number variant required for your design.

Fixed Inductors Selection Notes

Select this inductor when designing for automotive environments requiring AEC-Q200 compliance. Ensure the circuit operates within the 750 mA continuous current limit to prevent overheating. The 770 mOhm DCR impacts efficiency; verify thermal management capabilities. Consider the physical dimensions of 12.5 mm x 12.5 mm x 6.5 mm for PCB layout constraints.

Fixed Inductors Part Context

Part of the LGJ series of fixed power inductors designed for SMD mounting. This series emphasizes robustness and shielding for demanding applications. The model number indicates specific electrical characteristics including the 470 µH value and current ratings. It belongs to TDK's portfolio of components targeting high-reliability sectors.
