LGJ7045TC-1R0N-D

Fixed Inductors Overview

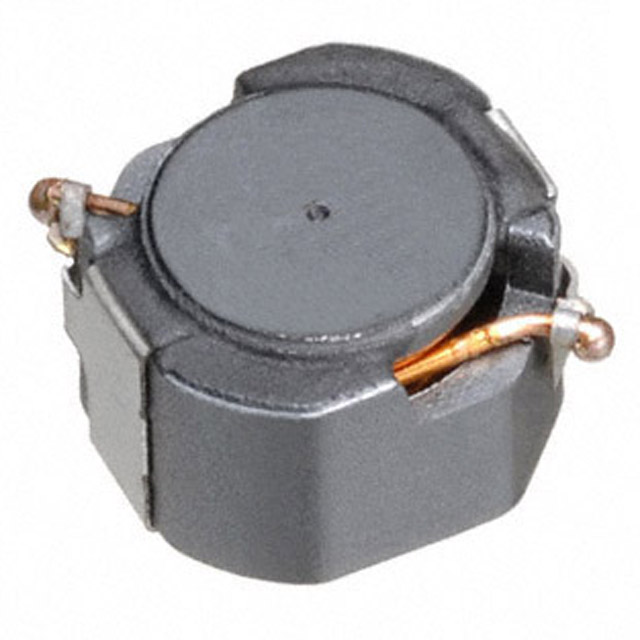

The TDK LGJ7045TC-1R0N-D is a shielded surface-mount power inductor from the LGJ series, designed for automotive applications. It features a ferrite drum core and wirewound construction with AEC-Q200 qualification. Key electrical parameters include an inductance of 1 µH with ±30% tolerance, a maximum DC resistance of 9.6 mΩ, and a saturation current of 8.9 A. The component operates within a temperature range of -40°C to +150°C and measures 7 mm x 7 mm x 4.5 mm.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• Shielded design minimizes electromagnetic interference
• High saturation current capability for power handling
• Extended operating temperature range up to 150°C

Fixed Inductors Applications

• Automotive power supply circuits
• On-board charging systems
• DC-DC converter modules
• Electronic control unit (ECU) filtering

Fixed Inductors Procurement Notes

This component is officially designated as obsolete or not recommended for new designs by TDK. Procurement should focus on verifying end-of-life status through official Product Change Notices. Engineers must confirm availability of valid replacement parts before finalizing designs to ensure long-term supply chain stability.

Fixed Inductors Selection Notes

Select this part only if legacy compatibility is required, as it has been superseded by newer series. Verify that the 1 µH inductance and 8.9 A saturation current meet specific circuit requirements. Ensure the PCB footprint matches the 7x7 mm package dimensions and account for thermal management due to the high current rating.

Fixed Inductors Part Context

The LGJ series represents TDK's line of shielded power inductors tailored for harsh automotive environments. This specific model utilizes a robust drum core structure to maintain performance under high current loads. It is part of a broader family of components designed to support electric vehicle and advanced driver-assistance system architectures.

Fixed Inductors Replacement Considerations

Official substitutes include CLF7045NIT-1R0N-D and CLF6045NIT-1R0N-D. These alternatives offer similar inductance values but may differ in physical dimensions or current ratings. Validate pinout compatibility and thermal characteristics when transitioning to these replacement parts.
