LH R974-LP-1-0-20-R18

$0.30

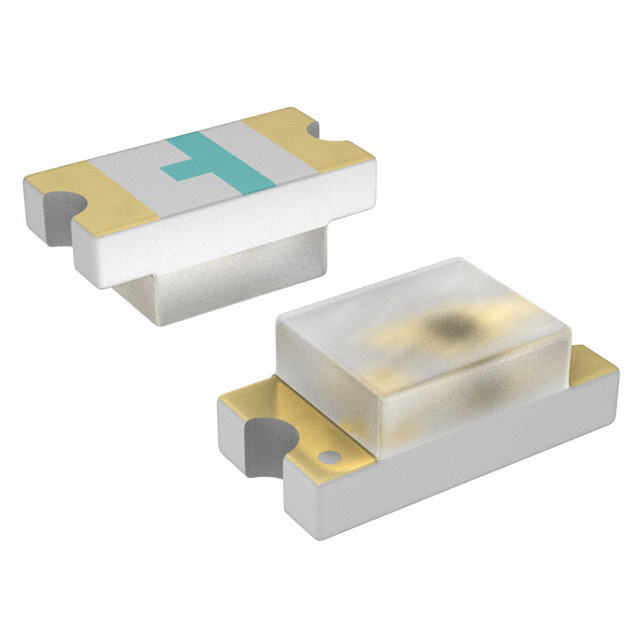

Description：LED RED DIFFUSED 0805 SMD
Series：CHIPLED 0805
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:716c953a5e23 Category: LED Indication - Discrete Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LH R974-LP-1-0-20-R18 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED RED DIFFUSED 0805 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LH R974-LP-1-0-20-R18

Description：LED RED DIFFUSED 0805 SMD
Series：CHIPLED 0805
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：41mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ)：1.8V
Current - Test：20mA
Viewing Angle：160°
Mounting Type：Surface Mount
Wavelength - Dominant：645nm
Wavelength - Peak：660nm
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LH R974-LP-1-0-20-R18

LH R974-LP-1-0-20-R18

LED Indication - Discrete Overview

The LH R974-LP-1-0-20-R18 is a red LED from the CHIP LED 0603 series by ams OSRAM. It features a rectangular lens with dimensions of 1.6 x 0.8 mm and a viewing angle of 120 degrees. The component operates at a forward voltage of 2.0 V and a maximum forward current of 20 mA. It emits light at a peak wavelength of 635 nm with a luminous intensity of 15 mcd. The device is designed for surface mount installation in a 0603 package.

LED Indication - Discrete Feature Summary

Provides high-intensity red illumination suitable for indicator applications
Features a compact 0603 surface-mount footprint for space-constrained designs
Offers a wide 120-degree viewing angle for broad visibility

LED Indication - Discrete Applications

Status indicators on electronic devices
Backlighting for control panels
Visual signaling in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct binning and packaging configuration matches your production requirements. Confirm that the component meets all necessary regional compliance standards, such as RoHS, prior to integration into final assemblies.

LED Indication - Discrete Selection Notes

Select this component when a small form factor is required alongside standard red emission characteristics. Ensure the driving circuit can accommodate the specified 2.0 V forward voltage and 20 mA current limits to maintain optimal performance and longevity.

LED Indication - Discrete Part Context

This part belongs to the CHIP LED 0603 family, which provides standardized surface-mount solutions for various optical signaling needs. It complements other colors in the series, offering consistent mechanical dimensions and mounting reliability across different product lines.
