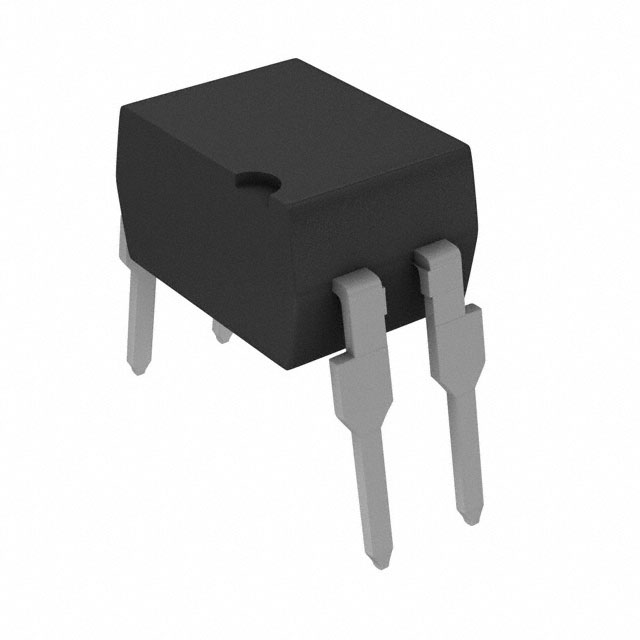

Solid State Relays (SSR) LH1546AD product image

LH1546AD

Description：SSR RELAY SPST-NO 120MA 0-350V
Series：LH1546
Mfr：Vishay Semiconductor Opto Division
Package：Tube

SKU:b9e8cc6713be Category: Solid State Relays (SSR) Brand: Vishay Semiconductor Opto Division

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LH1546AD is listed in the Solid State Relays (SSR) range at ChipApex. The manufacturer field lists Vishay Semiconductor Opto Division. Its product description is SSR RELAY SPST-NO 120MA 0-350V. Review the specifications below when checking this part for your BOM.

Solid State Relays (SSR) specifications for LH1546AD

Description：SSR RELAY SPST-NO 120MA 0-350V
Series：LH1546
Mfr：Vishay Semiconductor Opto Division
Package：Tube
Mounting Type：Through Hole
Circuit：SPST-NO (1 Form A)
Output Type：AC, DC
Voltage - Input：1.2VDC
Voltage - Load：0 V ~ 350 V
Load Current：120 mA
Termination Style：PC Pin
Package / Case：4-DIP (0.300", 7.62mm)
Supplier Device Package：4-DIP
On-State Resistance (Max)：28 Ohms
Grade：-
Qualification：-
Operating Temperature：-40°C ~ 85°C
Approval Agency：BSI, cUL, FIMKO, UL, VDE

Solid State Relays (SSR) datasheet and documents for LH1546AD

LH1546AD
