LHC151512EMC

Overview

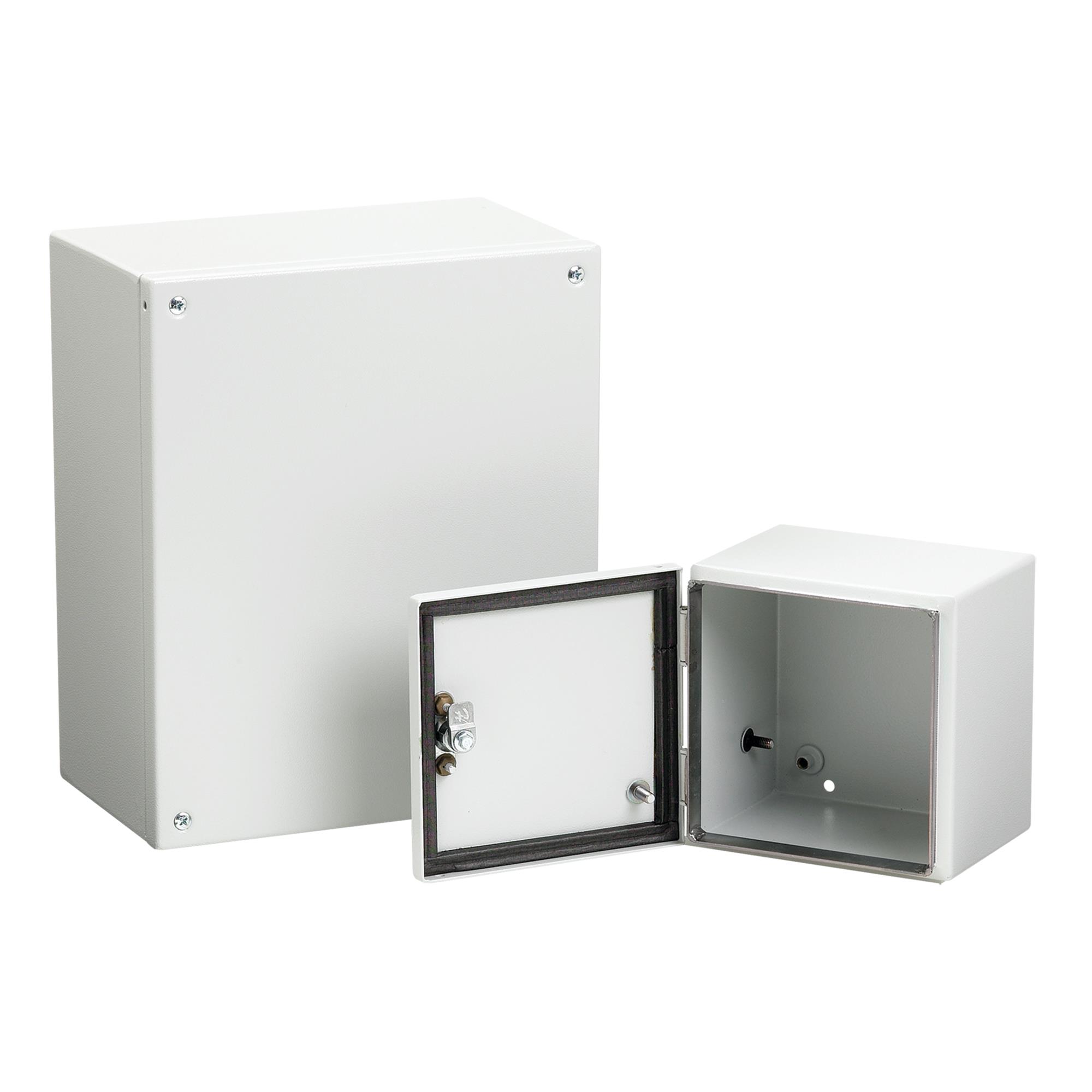

The Hoffman Enclosures Inc. LHC151512EMC is an INLINE EMC steel enclosure with dimensions of 150.00mm x 150.00mm x 120.00mm (5.906" L x 5.906" W x 4.724" H). Constructed from mild steel with a light gray polyester powder painted finish, it features a hinged door secured by a quarter-turn latch. The unit provides NEMA Type 1 and UL-508A ratings for indoor use.

Feature Summary

• Provides electromagnetic compatibility (EMC) protection through specialized design
• Features a flush hinged door design secured by a quarter-turn latch
• Constructed from mild steel with a durable polyester powder painted finish

Applications

• Indoor industrial control panels requiring EMC shielding
• Automation systems needing compact wall-mount enclosures
• Electrical component housing in environments adhering to NEMA Type 1 standards

Procurement Notes

Verify the specific EMC performance characteristics against your system requirements, as standard NEMA Type 1 ratings do not inherently guarantee full electromagnetic interference suppression without proper grounding and sealing. Confirm that the quarter-turn latch mechanism meets your security needs. Ensure the mounting surface supports the specified weight and dimensions for stable installation.

Selection Notes

Select this model when both physical protection and electromagnetic interference mitigation are required within a compact footprint. The INLINE EMC series is distinct from standard NEMA enclosures due to its conductive properties and sealing design intended for signal integrity. Consider the 150x150x120mm internal volume for component placement and verify that the hinged door access suits your maintenance workflow.

Part Context

This part belongs to the Hoffman INLINE EMC series, designed specifically for applications where electromagnetic interference is a concern. Unlike standard steel enclosures, these units incorporate features to maintain signal integrity while providing mechanical protection. The series offers various sizes, with this model representing a medium-sized option suitable for dense electronic assemblies.

Replacement Considerations

Direct substitutes may include other Hoffman INLINE EMC models with identical or compatible dimensions. Verify that any replacement maintains the same EMC shielding effectiveness and mounting hole patterns. Standard NEMA Type 1 enclosures without EMC specifications are not functional equivalents if interference protection is required.
