LHC353020SS6

Overview

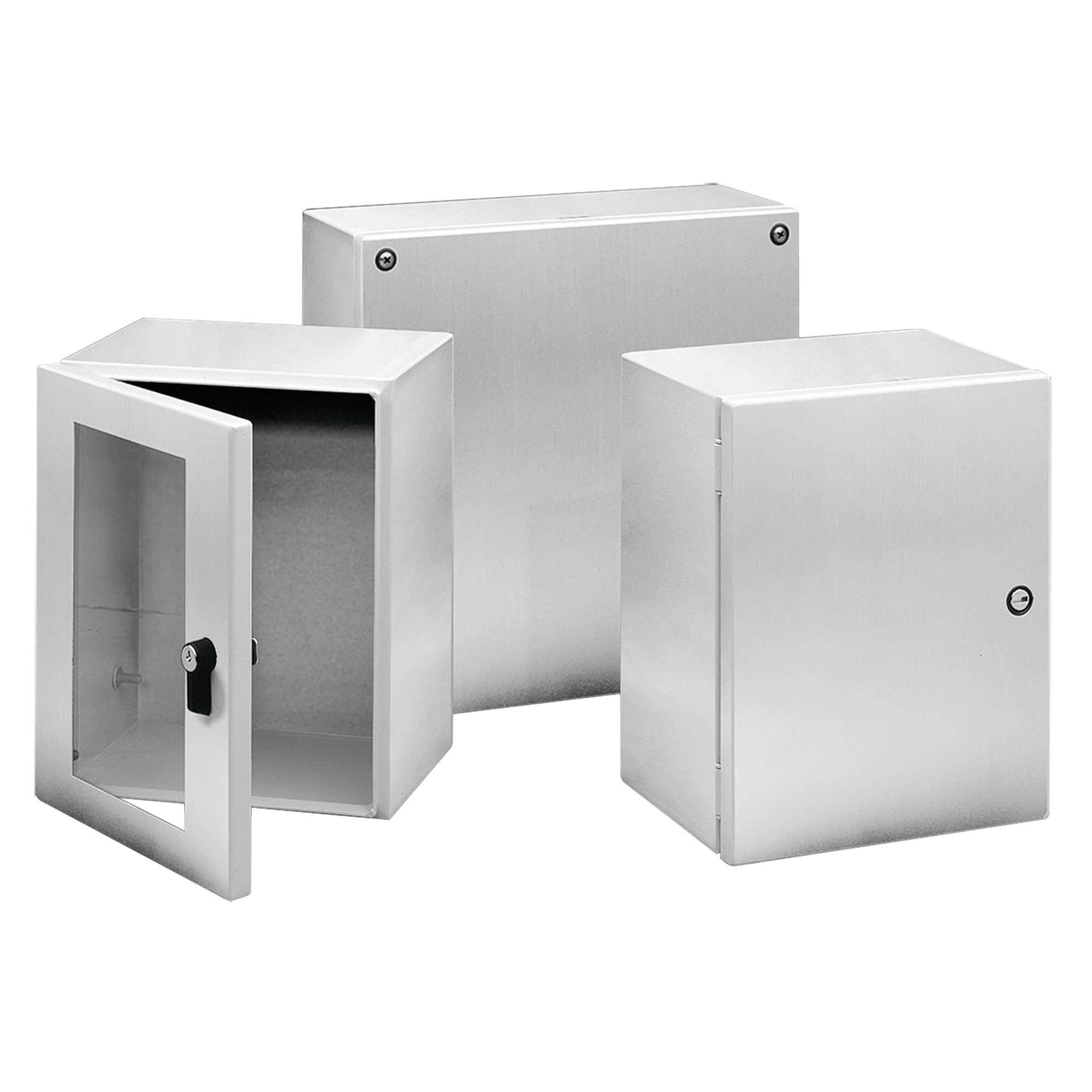

The LHC353020SS6 is a stainless steel enclosure manufactured by Hoffman Enclosures, Inc. It measures 350 mm in length, 300 mm in width, and 200 mm in height. Constructed from 316L stainless steel, the unit features a hinged cover style with a quarter-turn slotted latch. The body is formed from 14-gauge material, while the covers and doors utilize 14-gauge construction. Seams are continuously welded and ground smooth to ensure integrity. The design includes an external formed body flange trough and a large perimeter body opening.

Feature Summary

• Constructed from 316L stainless steel for corrosion resistance
• Features continuously welded and ground smooth seams
• Includes an external formed body flange trough to prevent contaminant entry
• Equipped with a quarter-turn slotted latch for secure closure

Applications

• Wall-mounted industrial control environments
• Applications requiring NEMA Type 4X protection
• Facilities demanding high corrosion resistance
• Electrical component housing in harsh conditions

Procurement Notes

Verify that the specific project requirements align with the 316L stainless steel material specification and the NEMA Type 4X rating. Confirm that the wall-mount mounting type fits the installation space. Ensure the quarter-turn slotted latch mechanism meets operational security needs. Check compatibility with any required internal accessories or DIN rails before finalizing the order.

Selection Notes

Select this model when superior corrosion resistance is critical compared to standard stainless steel options. The 316L composition offers enhanced performance in chemical or marine environments. Consider the 350x300x200mm dimensions for adequate internal volume. The hinged cover allows for easier access than removable lids during maintenance. Verify that the IP66 rating satisfies environmental exposure standards.

Part Context

This component belongs to the INLINE series of enclosures from Hoffman Enclosures. The series is characterized by outward-formed body flanges designed to block contaminants. This specific model represents the stainless steel variant within the lineup, offering durability beyond standard steel alternatives while maintaining the structural benefits of the INLINE design philosophy.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for dimensional equivalents if direct substitution is required.
