LHY-1H+

Overview

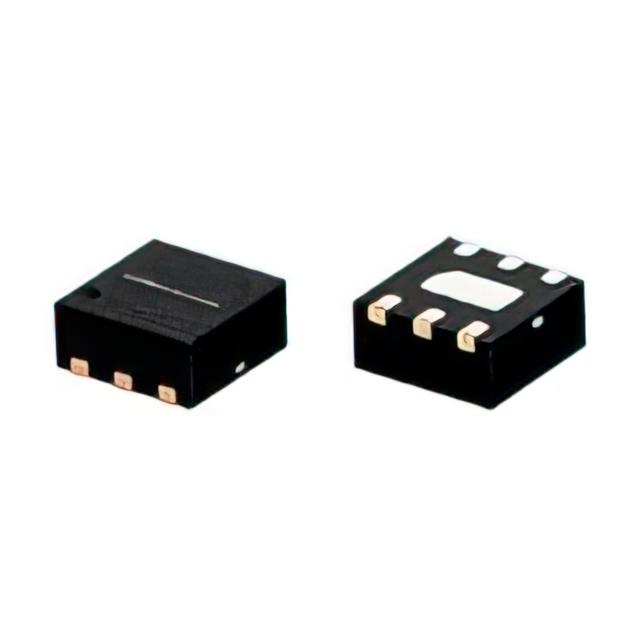

The LHY-1H+ is a monolithic RF amplifier manufactured by Mini-Circuits, designed for surface-mount technology applications. It operates within a frequency range of 50 MHz to 6 GHz, providing a typical gain of 14 dB. The device requires a supply voltage between 4 V and 5 V DC and draws approximately 165 mA of current. With an output power capability of 23 dBm, it serves as a linear amplifier suitable for various broadband communication systems.

Feature Summary

• Monolithic construction ensures consistent performance across the specified bandwidth
• Surface-mount package facilitates automated assembly and compact circuit design
• Linear amplification characteristics maintain signal integrity in complex modulation schemes

Applications

• CATV distribution networks
• DBS receiver front-ends
• LTE infrastructure components
• Wireless LAN signal conditioning

Procurement Notes

Verify the specific ordering suffix against official Mini-Circuits documentation to ensure correct package type and termination specifications. Confirm that the required operating voltage and current draw align with your system's power budget before finalizing procurement orders.

Selection Notes

Select this component when a broadband linear amplifier is needed for frequencies up to 6 GHz. Ensure the application can accommodate the 165 mA current consumption and that the 23 dBm output power meets the system requirements without requiring additional buffering stages.

Part Context

This part belongs to Mini-Circuits' line of monolithic microwave integrated circuits (MMICs). These components are engineered for high reliability and performance in RF and microwave applications, offering a compact alternative to discrete transistor solutions for signal amplification tasks.

Replacement Considerations

Consult Mini-Circuits official substitution guides for direct replacements. Verify that any substitute component matches the 50-6000 MHz frequency range and similar gain and power specifications to maintain system performance.
