LI0402C470R-10

Chip Ferrite Bead Overview

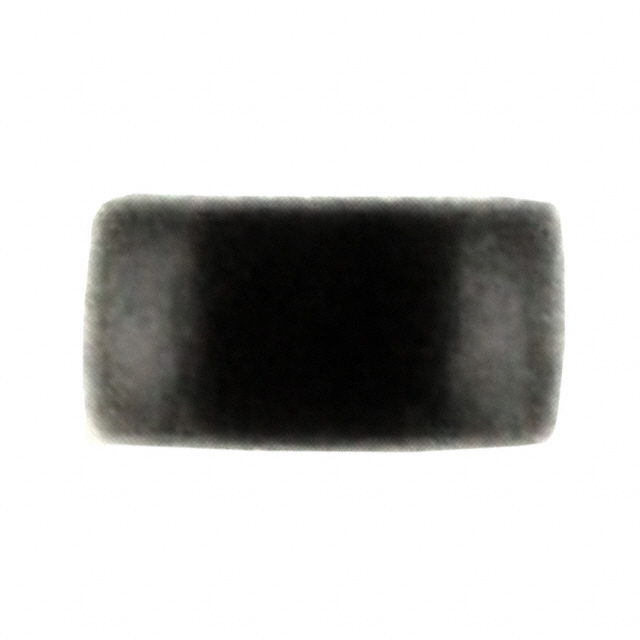

The LI0402C470R-10 is a single-line ferrite chip bead manufactured by Laird-Signal Integrity Products. It features an impedance of 47 Ohms at a test frequency of 100 MHz and a maximum DC resistance of 150 mOhms. The component supports a maximum DC current of 300 mA and operates within a temperature range of -40°C to +125°C. It utilizes a surface-mount 0402 (1005 metric) package with physical dimensions of 1 mm length, 0.5 mm width, and 0.65 mm height.

Chip Ferrite Bead Feature Summary

• Provides electromagnetic interference filtering for power and signal lines
• Designed for high-frequency noise suppression in compact spaces
• Constructed for reliable operation across extended industrial temperature ranges

Chip Ferrite Bead Applications

• Power line filtering in portable electronics
• Signal line protection in communication modules
• Noise suppression in compact consumer devices

Chip Ferrite Bead Procurement Notes

Verify the manufacturer part number against official Laird documentation to ensure authenticity. Confirm that the specific suffix matches the required impedance and tolerance specifications. Check RoHS compliance status directly from the datasheet. Ensure the ordering quantity aligns with available packaging formats such as cut tape or reel. Validate the component's suitability for the intended thermal environment before finalizing procurement.

Chip Ferrite Bead Selection Notes

Select this component when space constraints require a 0402 footprint for EMI suppression. Choose based on the 47 Ohm impedance requirement at 100 MHz for target noise frequencies. Ensure the circuit current does not exceed the 300 mA rating to prevent saturation. Verify compatibility with standard surface-mount assembly processes. Consider the low DC resistance to minimize voltage drop in sensitive power paths.

Chip Ferrite Bead Part Context

This component belongs to the LI series of ferrite beads from Laird-Signal Integrity Products. The series offers various impedance values and package sizes for different filtering needs. The LI0402C470R-10 specifically addresses applications requiring moderate noise attenuation in small form factors. It complements other components in the Laird signal integrity portfolio designed for modern electronic systems.

Chip Ferrite Bead Replacement Considerations

Consult official Laird substitution guides for verified alternatives. Cross-reference impedance curves and current ratings carefully. Ensure physical dimensions match the existing PCB footprint. Verify that any substitute meets the same temperature and RoHS requirements.
