LLBHB2520MKT1R5MG

Fixed Inductors Overview

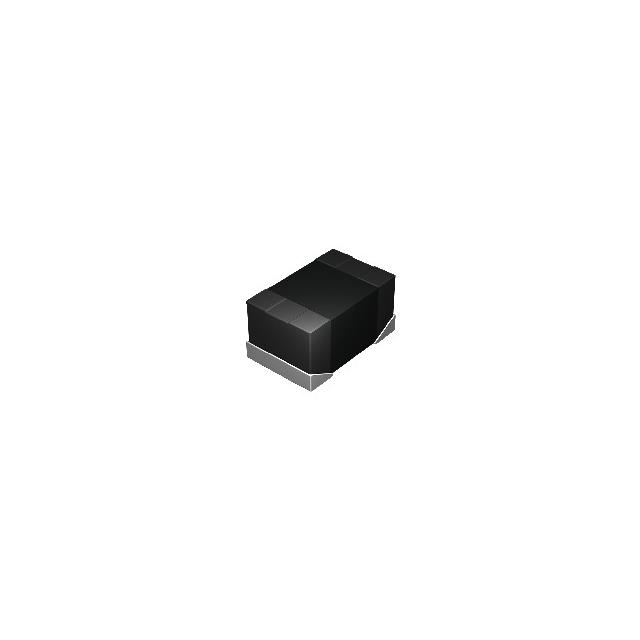

The LLBHB2520MKT1R5MG is a fixed wirewound inductor from the MCOIL Medical series by Taiyo Yuden. It features a 1.5 µH nominal inductance with ±20% tolerance and a rated current of 1.5 A. The component has a saturation current of 2.05 A and a maximum DC resistance of 65 mΩ. Designed for surface mount installation, it utilizes a metal core within a shielded construction. The physical dimensions are 2.50 mm x 2.00 mm x 1.20 mm (1008 metric package). It operates within a temperature range of -40°C to +125°C and complies with RoHS3 standards.

Fixed Inductors Feature Summary

• Shielded wirewound construction utilizing a metal core to minimize electromagnetic interference.
• Optimized for medical applications with high current capacity and low core loss characteristics.
• Compact 1008 metric footprint designed for space-constrained surface mount PCB layouts.

Fixed Inductors Applications

• Medical electronic devices
• Portable healthcare equipment
• Power supply filtering circuits

Fixed Inductors Procurement Notes

Verify the specific suffix 'MG' against the manufacturer's official datasheet to confirm compliance with medical-grade requirements and material specifications. Ensure that the selected packaging format aligns with production line capabilities. Cross-reference the part number with the latest product change notices to confirm active status and availability constraints prior to finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when design requirements demand a shielded inductor suitable for medical environments. The 1.5 µH value and 1.5 A rated current support standard power management topologies. Consider the 65 mΩ DCR for efficiency calculations and verify that the 2.05 A saturation limit accommodates peak load currents without performance degradation in the target application circuit.

Fixed Inductors Part Context

This inductor belongs to the MCOIL Medical series, a specialized line of components engineered for healthcare electronics. The series emphasizes reliability and low noise performance. The LLBHB2520MKT1R5MG represents a specific variant within the 2520 metric size family, offering a balance between electrical performance and compact physical dimensions for modern portable medical instrumentation.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative shielded inductors based on identical electrical parameters and mechanical footprint if sourcing changes occur.
