LLP.2450.X.A.30

Overview

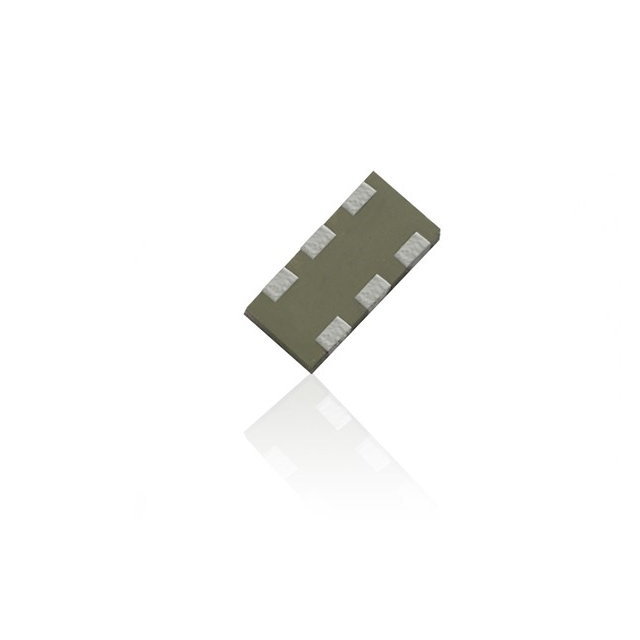

The LLP.2450.X.A.30 is an LTCC low-pass filter designed for the 2450 MHz ISM band, manufactured by Taoglas Limited. It operates with a center frequency of 2450 MHz and provides a bandwidth of 100 MHz to ensure precise signal conditioning. The component utilizes a surface-mount package in the 0603 (1608 Metric) dimension, measuring 1.60mm x 0.80mm with a height of 0.6mm. It features a six-pad configuration for reliable PCB integration. This RF filter is engineered to suppress unwanted harmonic frequencies while maintaining signal integrity in compact wireless modules.

Feature Summary

• Utilizes LTCC technology for robust thermal stability and high Q-factor performance
• Provides precise low-pass filtering specifically tuned for the 2450 MHz ISM band
• Features a compact 0603 surface-mount footprint suitable for space-constrained designs

Applications

• ISM band wireless communication modules
• Bluetooth Low Energy (BLE) device interfaces
• Wi-Fi enabled IoT sensors
• RF signal conditioning in compact consumer electronics

Procurement Notes

Verify the specific suffix variant against the official Taoglas datasheet to confirm exact electrical tolerances and packaging specifications. Ensure compatibility with standard reflow soldering profiles for 0603 LTCC components. Confirm that the 100 MHz bandwidth meets the system's harmonic suppression requirements before finalizing procurement orders.

Selection Notes

Select this component when a compact, high-performance low-pass filter is required for 2.4 GHz applications. The 0603 size offers a balance between performance and board space efficiency. Consider the LTCC construction for environments requiring stable operation across varying temperatures. Verify impedance matching requirements for the specific RF path design.

Part Context

This part belongs to Taoglas Limited's portfolio of advanced RF filters and antenna solutions. It is categorized under signal conditioning components designed for M2M and IoT connectivity challenges. The product line supports industries such as automotive, utility metering, and remote monitoring where reliable wireless transmission is critical.

Replacement Considerations

Consult the official Taoglas cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains the 0603 footprint and 2450 MHz cutoff characteristics. Verify that alternative LTCC filters meet the same thermal and mechanical reliability standards.
