LLP.2500.X.B.30

Overview

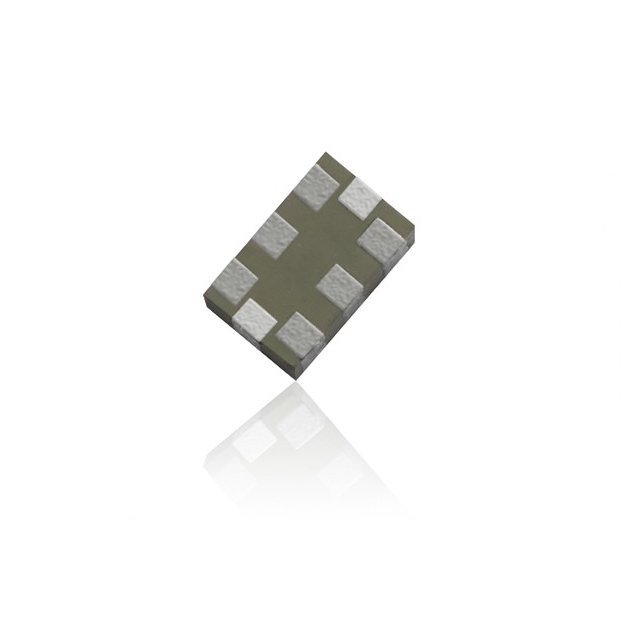

The LLP.2500.X.B.30 is an LTCC low-pass filter manufactured by Taoglas Limited, designed for operation at a center frequency of 2500 MHz. It features a bandwidth of 100 MHz and a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination styles and is housed in a compact package measuring 2.9 mm x 1.25 mm x 0.95 mm. It operates within a temperature range of -40°C to +85°C and complies with RoHS3 standards.

Feature Summary

• Utilizes Low-Temperature Co-fired Ceramic (LTCC) technology for robust signal filtering
• Provides low-pass filtering functionality centered at 2500 MHz
• Designed for surface-mount assembly via SMD/SMT termination

Applications

• RF signal conditioning in wireless communication systems
• Harmonic suppression in transmitter output stages
• Noise filtering in 2.5 GHz band applications

Procurement Notes

Verify the specific package dimensions against official datasheets, as sources indicate variations between 2.00mm and 2.9mm lengths. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributors. Ensure the selected variant matches the required soldering temperature profiles for reliable assembly.

Selection Notes

Select this component when a 50-Ohm low-pass filter is required for 2500 MHz applications. Consider the physical footprint constraints, noting potential dimensional discrepancies in public listings. Verify that the 100 MHz bandwidth aligns with system requirements. Check for availability of cut tape or reel packaging options based on production volume needs.

Part Context

This part belongs to the LLP series of ceramic filters from Taoglas Limited. The series includes various configurations for different frequencies, such as the LLP.5875 model for 5875 MHz. These components are engineered for high-performance RF environments requiring stable filtering characteristics in compact form factors.

Replacement Considerations

No officially confirmed substitute part numbers are documented in the provided source material. Consult Taoglas technical support for potential cross-references or updated equivalents if this specific model becomes unavailable.
