LLSD103B-TP is listed in the Single Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE SCHOTT 30V 350MA MINI MELF. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for LLSD103B-TP
- Description：DIODE SCHOTT 30V 350MA MINI MELF
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io)：350mA
- Voltage - Forward (Vf) (Max) @ If：600 mV @ 200 mA
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：10 ns
- Current - Reverse Leakage @ Vr：5 µA @ 20 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package：Mini MELF
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for LLSD103B-TP
Single Diodes Overview

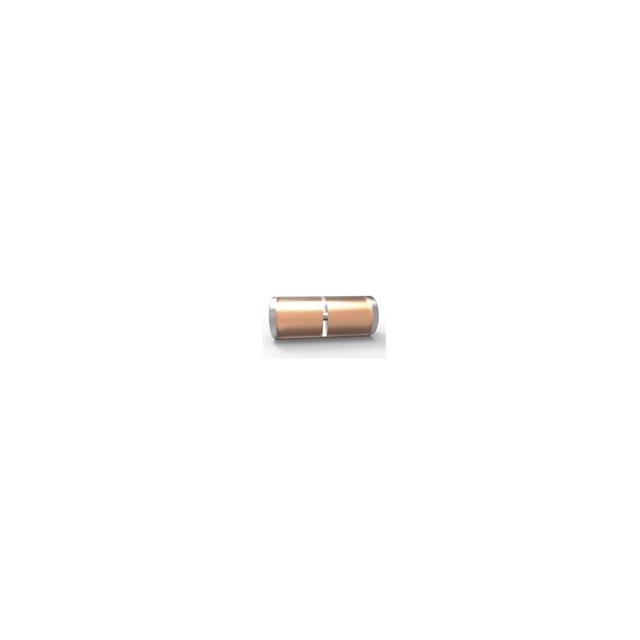

The LLSD103B-TP is a Schottky Barrier Switching Diode from Micro Commercial Components, housed in a MiniMELF glass case. It features a peak repetitive reverse voltage of 30V and a maximum forward continuous current of 350mA. The device exhibits a low reverse recovery time of 10ns and a junction capacitance of 50pF. Maximum ratings include a power dissipation of 400mW and an operating temperature range from -55°C to +150°C.
Single Diodes Feature Summary
- Guard ring construction for transient protection
- Low reverse recovery time
- Low forward voltage drop
- Low reverse capacitance
Single Diodes Applications
- High-speed switching circuits
- Clamping applications
- Protection against voltage transients
Single Diodes Procurement Notes
Verify the specific part number suffix against official manufacturer documentation to confirm packaging details and compliance status. Ensure that the ordering information matches the required tape and reel quantity. Confirm RoHS compliance and lead-free finish specifications directly with the supplier or datasheet before procurement.
Single Diodes Selection Notes
Select this component when a fast-switching diode with low capacitance is required in a MiniMELF package. Consider the 30V reverse voltage rating and 350mA current capacity relative to circuit demands. Evaluate thermal resistance and power dissipation limits for high-temperature environments.
Single Diodes Part Context
This component belongs to the LLSD103 series, which includes variants with different reverse voltage ratings (LLSD103A at 40V and LLSD103C at 20V). All variants share similar electrical characteristics regarding forward voltage and recovery time but differ in blocking voltage capabilities.
Single Diodes Replacement Considerations
Consult official substitution lists for equivalent MiniMELF Schottky diodes with matching 30V reverse voltage and 350mA current ratings. Verify pinout compatibility and thermal performance before replacing.
