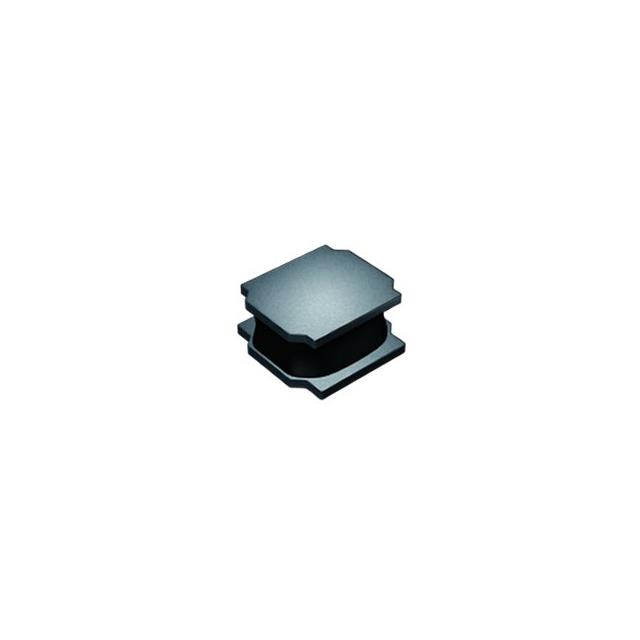

LLXBD3030QKT3R3M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 3.3UH 1.23A 96MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for LLXBD3030QKT3R3M
- Description：FIXED IND 3.3UH 1.23A 96MOHM SMD
- Series：LLXB
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR)
- Type：Wirewound
- Material - Core：Ferrite
- Inductance：3.3 µH
- Tolerance：±20%
- Current Rating (Amps)：1.23 A
- Current - Saturation (Isat)：1.21A
- Shielding：Shielded
- DC Resistance (DCR)：80mOhm
- Q @ Freq：-
- Frequency - Self Resonant：49MHz
- Ratings：-
- Operating Temperature：-25°C ~ 120°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：1212 (3030 Metric)
- Supplier Device Package：1212
- Size / Dimension：0.118" L x 0.118" W (3.00mm x 3.00mm)
- Height - Seated (Max)：0.059" (1.50mm)
- Features：-
Fixed Inductors datasheet and documents for LLXBD3030QKT3R3M
Fixed Inductors Overview
The LLXBD3030QKT3R3M is a surface-mount power inductor from Taiyo Yuden, featuring a low-profile wound design with shielded construction and a ferrite core. It offers an inductance of 3.3 µH with a tolerance of ±20%. The component exhibits a self-resonant frequency of 49 MHz, which helps reduce electromagnetic interference. Packaged in tape and reel format for automated assembly, it is designed for efficient integration into compact electronic circuits requiring reliable magnetic shielding.
Fixed Inductors Feature Summary
- Shielded construction utilizing a ferrite core to minimize electromagnetic interference
- Low-profile wound design suitable for space-constrained applications
Fixed Inductors Applications
- Power supply filtering
- DC-DC converter circuits
- General-purpose signal processing
Fixed Inductors Procurement Notes
Verify the specific datasheet version and electrical characteristics against official Taiyo Yuden documentation before procurement. Ensure that the operating environment and measurement conditions align with the manufacturer's specifications, as performance may vary under different conditions. Confirm package compatibility and handling requirements for automated assembly processes.
Fixed Inductors Selection Notes
Select this component when electromagnetic interference reduction is critical due to its shielded ferrite core design. The low-profile form factor makes it appropriate for applications with strict height restrictions. Consider the 3.3 µH inductance value and 49 MHz self-resonant frequency to ensure suitability for the target circuit's frequency range and power requirements.
Fixed Inductors Part Context
Taiyo Yuden Co., Ltd. is a Japanese electronics manufacturer established in 1950, specializing in passive components and materials. The company is known for pioneering CD-R technology and continues to produce high-quality electronic components, including power inductors designed for automotive and industrial applications.
Fixed Inductors Replacement Considerations
The LSXBD3030KKT470M is listed as a previous part number variant within the same product family. Verify electrical equivalence and physical dimensions before substitution.
