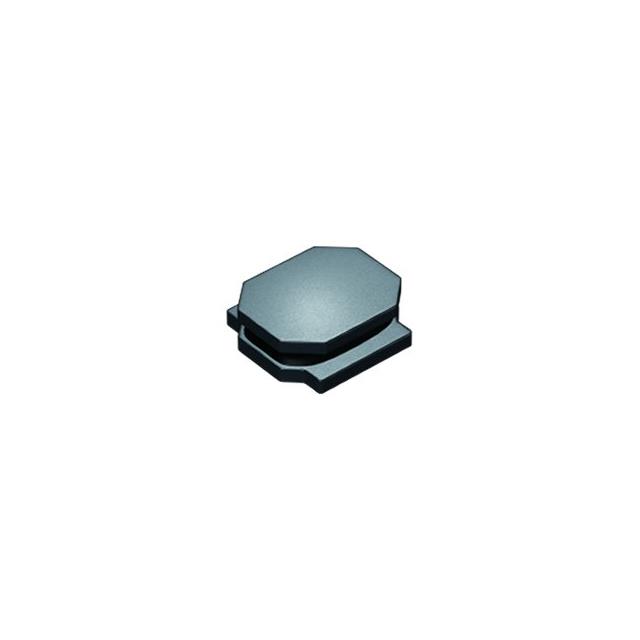

LLXND6060WKL0R8NMG is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 800NH 4.1A 24 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for LLXND6060WKL0R8NMG
- Description：FIXED IND 800NH 4.1A 24 MOHM SMD
- Series：LLXN
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR)
- Type：Wirewound
- Material - Core：Ferrite
- Inductance：800 nH
- Tolerance：±30%
- Current Rating (Amps)：4.1 A
- Current - Saturation (Isat)：6.4A
- Shielding：Shielded
- DC Resistance (DCR)：20mOhm
- Q @ Freq：-
- Frequency - Self Resonant：110MHz
- Ratings：-
- Operating Temperature：-25°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：2424 (6060 Metric)
- Supplier Device Package：2424
- Size / Dimension：0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max)：0.079" (2.00mm)
- Features：-
Fixed Inductors datasheet and documents for LLXND6060WKL0R8NMG
