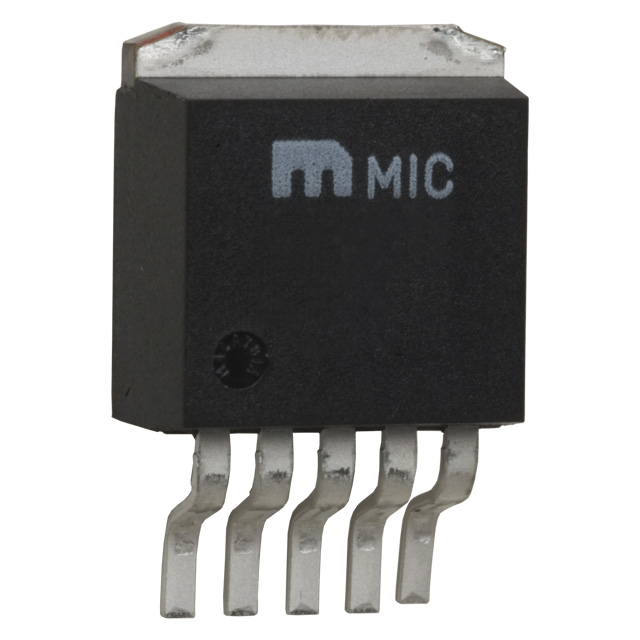

LM2575-12BU TR

Description：IC REG BUCK 12V 1A TO263-5
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR)

SKU:6dc59699113b Category: Voltage Regulators - DC DC Switching Regulators Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LM2575-12BU TR is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is IC REG BUCK 12V 1A TO263-5. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LM2575-12BU TR

Description：IC REG BUCK 12V 1A TO263-5
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Fixed
Number of Outputs：1
Voltage - Input (Min)：4V
Voltage - Input (Max)：40V
Voltage - Output (Min/Fixed)：12V
Voltage - Output (Max)：-
Current - Output：1A
Frequency - Switching：52kHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package：TO-263-5
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LM2575-12BU TR

LM2575-12BU TR

Voltage Regulators - DC DC Switching Regulators Overview

The LM2575-12BU TR is a monolithic integrated circuit from the LM2575 series, functioning as a step-down (buck) switching regulator. It provides a fixed 12 V output with a maximum load current of 1 A. The device operates with an input voltage range of 4 V to 40 V and utilizes a fixed switching frequency of 52 kHz. Designed for surface-mount applications, it is housed in a 24-SOIC package. The component supports a junction temperature range from -40°C to +125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrates all active functions required for a step-down switching regulator design
Utilizes internal fixed-frequency oscillators for simplified external component requirements
Includes built-in thermal shutdown and current limiting protection mechanisms

Voltage Regulators - DC DC Switching Regulators Applications

Distributed power supply systems requiring buck conversion
Pre-regulator circuits for linear regulators
Efficient battery-powered DC-to-DC converters

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific manufacturer designation, as the LM2575 series has been transferred between Texas Instruments and Microchip Technology. Confirm that the datasheet corresponds to the Microchip variant, particularly regarding pinout compatibility and electrical tolerances, to ensure integration with existing designs originally based on TI specifications.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this part when a fixed 12 V output is required from a higher input voltage rail up to 40 V. The 24-SOIC package is suitable for surface-mount assembly processes. Consider the 52 kHz switching frequency for applications where moderate efficiency and low electromagnetic interference are balanced against component size constraints.

Voltage Regulators - DC DC Switching Regulators Part Context

This component belongs to the LM2575 family of simple switcher regulators. The series is characterized by its ease of use and robust performance in standard buck converter topologies. The 'BU' suffix typically denotes the specific package type and tape-and-reel packaging configuration for automated manufacturing.
