LM3686TLE-AADW/NOPB

Overview

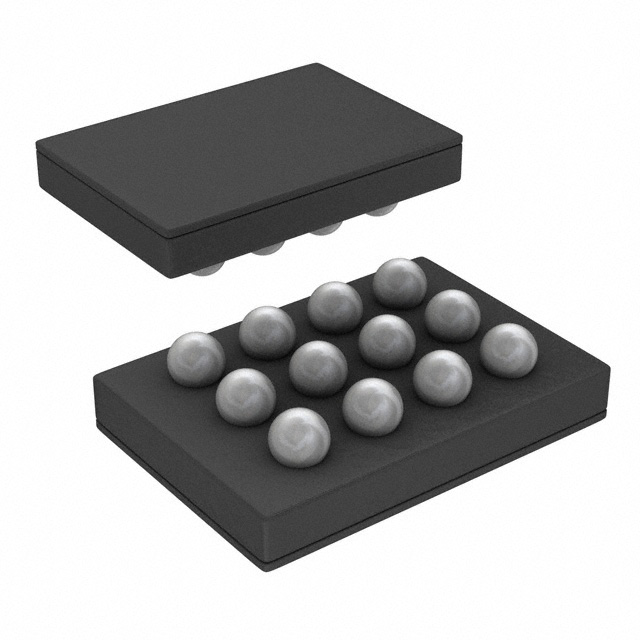

The LM3686TLE-AADW/NOPB is a dual-output step-down DC-DC converter manufactured by Texas Instruments. It operates with an input voltage range of 2.7 V to 5.5 V and provides two adjustable output voltages between 1.2 V and 2.5 V. The device delivers a total output current of 600 mA and utilizes a fixed switching frequency of 3 MHz. It features a low quiescent current of 70 uA and functions within a temperature range of -30°C to +85°C. The component is housed in a DSBGA-12 package.

Feature Summary

• Integrates two independent buck converters for efficient multi-rail power distribution
• Utilizes a high 3 MHz switching frequency to minimize external passive component size
• Features low quiescent current operation to extend battery life in portable applications

Applications

• Portable electronic devices requiring multiple low-voltage rails
• Battery-powered systems needing efficient step-down conversion
• Embedded systems with space-constrained PCB layouts

Procurement Notes

Verify the specific suffix AADW against the manufacturer datasheet to confirm pinout and electrical characteristics match your design requirements. Ensure the DSBGA-12 package compatibility with your assembly process. Confirm RoHS compliance status through official documentation before procurement.

Selection Notes

Select this component when designing circuits that require two isolated or coupled low-voltage outputs from a single higher voltage source. The 3 MHz frequency allows for smaller inductors and capacitors compared to lower-frequency alternatives. Verify that the required output voltage range falls within the 1.2 V to 2.5 V specification.

Part Context

This part belongs to the LM3686 series of dual-output synchronous buck converters. It is designed for applications where board space is limited and efficiency is critical. The device integrates power switches and control logic into a compact footprint, simplifying the design of complex power management systems.

Replacement Considerations

Check for direct pin-to-pin replacements within the same family, such as other LM3686 variants with different suffixes. Verify that any substitute maintains the same DSBGA-12 package and electrical specifications.
