LM7805TP

$0.34

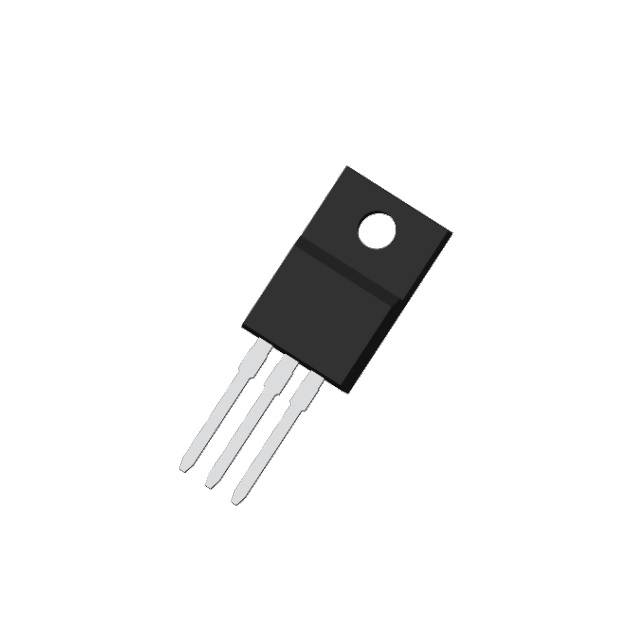

Description：IC REG LINEAR 5V 1.5A TO220F-3L
Series：-
Mfr：TAEJIN
Package：Tube

SKU:ff5cb841aa32 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: TAEJIN

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LM7805TP is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists TAEJIN. Its product description is IC REG LINEAR 5V 1.5A TO220F-3L. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for LM7805TP

Description：IC REG LINEAR 5V 1.5A TO220F-3L
Series：-
Mfr：TAEJIN
Package：Tube
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：35V
Voltage - Output (Min/Fixed)：5V
Voltage - Output (Max)：-
Voltage Dropout (Max)：2V @ 1A
Current - Output：1.5A
Current - Quiescent (Iq)：8 mA
Current - Supply (Max)：-
PSRR：-
Control Features：-
Protection Features：Over Current, Over Temperature, Short Circuit
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-220-3 Full Pack
Supplier Device Package：TO-220F-3L
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for LM7805TP

LM7805TP

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The LM7805TP is a fixed positive voltage regulator from the LM78xx series, manufactured by TAEJIN. It provides a nominal output voltage of 5V with a maximum output current capability of 1.5A. The device operates within an input voltage range of 7V to 35V and supports junction temperatures from 0°C to 125°C. It utilizes a TO-220F-3L package, which features electrical isolation for the tab. Key electrical parameters include a line regulation of 100mV (7V to 25V input) and load regulation of 100mV (5mA to 1.5A output).

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Internal thermal overload protection prevents damage during overheating conditions.
Internal short-circuit current limiting safeguards the device against output faults.
Output transistor safe-area compensation ensures stability under varying load conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

On-card regulation to eliminate noise associated with single-point power distribution.
Local regulation for power supplies in industrial control systems.
Power supply sections for embedded equipment requiring stable 5V rails.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify that the component matches the specific TO-220F-3L package configuration, as this variant offers electrical isolation compared to standard metal-tab packages. Confirm the manufacturer designation aligns with TAEJIN specifications rather than generic equivalents. Ensure the ordering suffix corresponds to the tube packaging format indicated in the official documentation.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when electrical isolation between the heatsink mounting surface and the ground pin is required. The TO-220F-3L package allows direct mounting to chassis without additional insulating hardware. Consider thermal resistance limits when designing for high ambient temperatures or continuous full-load operation.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the LM78xx family of three-terminal positive voltage regulators. These monolithic integrated circuits are designed to complement existing designs by providing reliable regulation in various applications. The series includes multiple fixed voltage options ranging from 5V to 24V, sharing common internal protection architectures.
