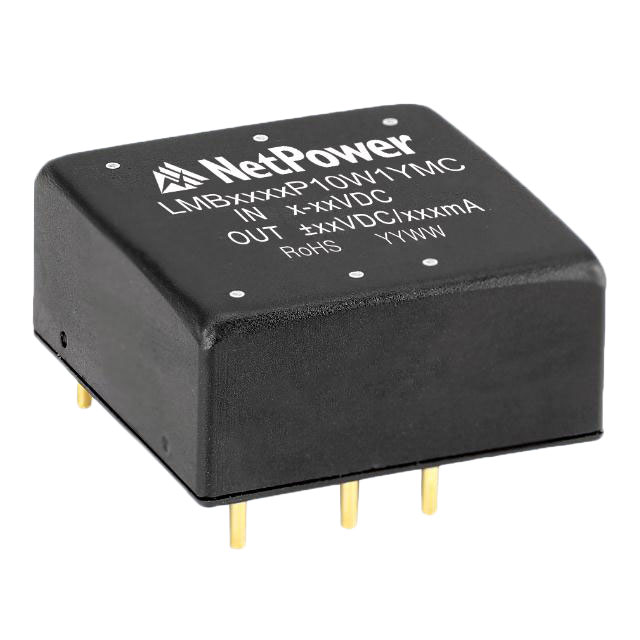

LMB1150P10W1YMC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists NetPower. Its product description is DC DC CONVERTER +/-15V 10W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for LMB1150P10W1YMC
- Description：DC DC CONVERTER +/-15V 10W
- Series：LM (10W)
- Mfr：NetPower
- Package：Tray
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：9V
- Voltage - Input (Max)：36V
- Voltage - Output 1：15V
- Voltage - Output 2：-15V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：333mA, 333mA
- Power (Watts)：10 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：Remote On/Off
- Operating Temperature：-40°C ~ 85°C (With Derating)
- Efficiency：87%
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
- Supplier Device Package：-
- Control Features：Enable, Active High
- Approval Agency：CE, cURus
- Standard Number：-
DC DC Converters datasheet and documents for LMB1150P10W1YMC
