LMB6S-TP

Overview

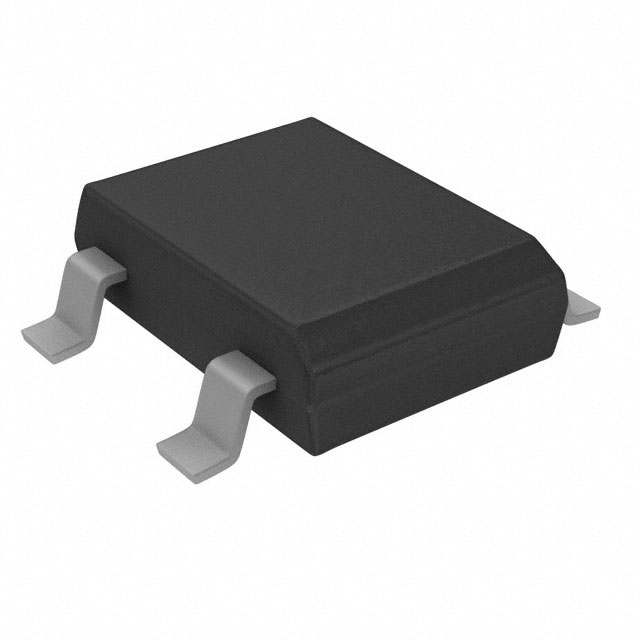

The LMB6S-TP is a single-phase bridge rectifier manufactured by Micro Commercial Components. It features a peak reverse voltage of 600 V and an average forward current rating of 1 A. The device utilizes standard silicon technology with a maximum forward voltage drop of 950 mV at 400 mA. Reverse leakage current is specified at 5 µA when subjected to 600 V. The component operates within a junction temperature range of -55°C to 150°C and is housed in the LMBS-1 surface-mount package.

Feature Summary

• Single-phase bridge rectification using standard silicon technology
• Surface-mount construction in the LMBS-1 package for automated assembly
• High thermal stability supporting extended junction temperature operation

Applications

• General-purpose AC to DC power supply circuits
• Low-voltage DC power conversion systems
• Consumer electronics power adapters

Procurement Notes

Verify the specific datasheet version and environmental compliance status, such as RoHS3 and REACH, prior to procurement. Confirm that the LMBS-1 package dimensions align with the target PCB footprint. Ensure the selected supplier provides valid traceability documentation and adheres to the manufacturer's handling guidelines for moisture-sensitive devices.

Selection Notes

Select this component for applications requiring a compact surface-mount bridge rectifier with a 600 V blocking capability. The 1 A current rating suits low-power designs where space constraints preclude through-hole packages. Evaluate the thermal performance requirements against the 150°C maximum junction temperature limit to ensure reliable long-term operation under expected load conditions.

Part Context

The LMB6S-TP belongs to the LMB series of bridge rectifiers from Micro Commercial Components. This series focuses on providing robust rectification solutions in small form-factor packages suitable for modern surface-mount manufacturing processes. The LMBS-1 package offers a compact alternative to larger DIP or standard SOIC bridge rectifiers, facilitating higher density circuit board layouts.

Replacement Considerations

Cross-reference with other MCC LMBS-1 variants or equivalent industry-standard 600 V 1 A SMD bridge rectifiers. Verify pinout compatibility and physical dimensions before substitution. Ensure replacement parts meet identical electrical specifications and regulatory compliance standards.
