LMH6522SQ/NOPB

Overview

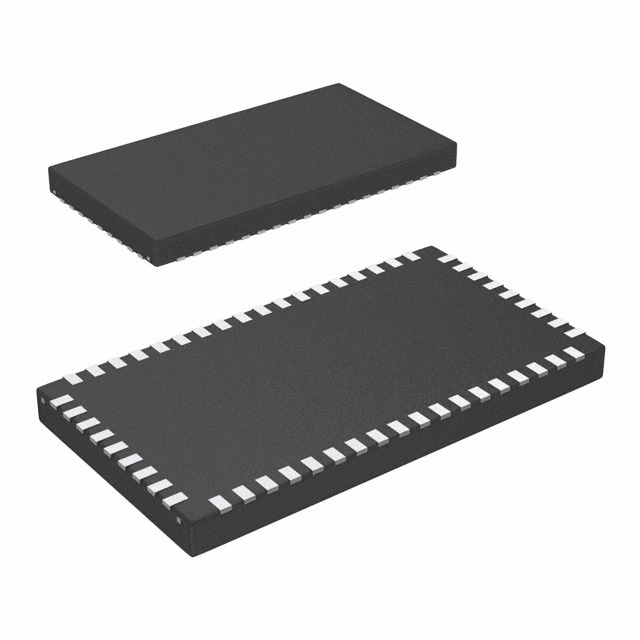

The LMH6522SQ/NOPB is a high-performance quadrature digital variable gain amplifier (DVGA) manufactured by Texas Instruments. It operates with a supply voltage ranging from 4.75 V to 5.25 V and draws a typical operating current of 465 mA. The device supports frequencies up to 1.4 GHz, providing a gain of 26 dB with a noise figure of 8.5 dB. Key linearity metrics include a P1dB compression point of 17 dBm and an OIP3 of 49 dBm. It is housed in a WQFN-54 package and functions within a temperature range of -40°C to +85°C.

Feature Summary

• Integrates four independent VGA channels for simultaneous signal processing
• Enables precise digital control over gain settings via serial interface
• Maintains consistent amplitude and phase balance across the operational bandwidth

Applications

• RF front-end modules requiring dynamic range adjustment
• Test and measurement instrumentation systems
• Wireless communication base station architectures

Procurement Notes

Verify the specific suffix 'SQ' against official documentation to confirm automotive qualification status and extended reliability standards. Ensure the ordering part number matches the exact package variant and temperature rating required for the target application environment before finalizing procurement.

Selection Notes

Select this component when designing systems that require multi-channel signal conditioning with digital programmability. Evaluate the trade-off between the 465 mA power consumption and the high linearity performance provided by the 49 dBm OIP3. Confirm that the system architecture can accommodate the necessary digital control logic for the VGA gain adjustments.

Part Context

This device belongs to the LMH6522 series of high-speed amplifiers designed for demanding RF applications. It serves as a specialized solution for managing signal levels in complex electronic systems where precision and wide dynamic range are critical requirements for maintaining signal integrity.

Replacement Considerations

Consult official substitution guides for verified alternatives. Cross-reference pinouts and electrical specifications carefully to ensure compatibility without modifying the existing circuit design.
