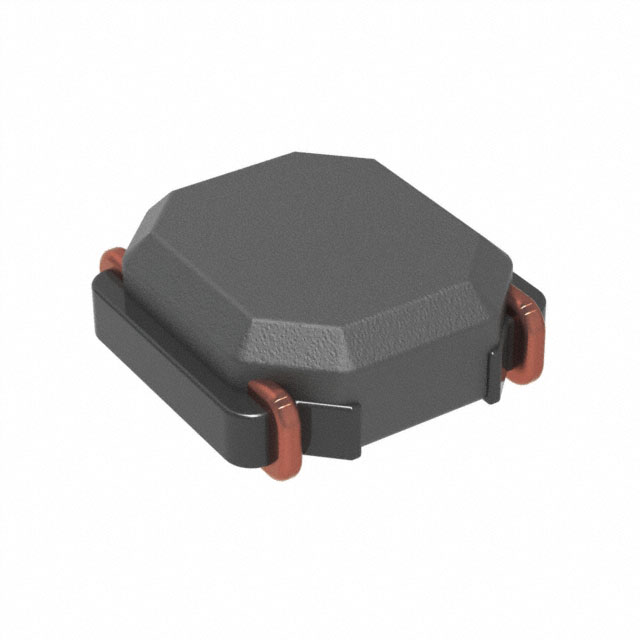

LMLP06D6M470CTAS is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is FIXED IND 47UH 1.1A 220 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for LMLP06D6M470CTAS
- Description：FIXED IND 47UH 1.1A 220 MOHM SMD
- Series：LMLP
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Ferrite
- Inductance：47 µH
- Tolerance：±20%
- Current Rating (Amps)：1.1 A
- Current - Saturation (Isat)：1.3A
- Shielding：Shielded
- DC Resistance (DCR)：220mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max)：0.177" (4.50mm)
- Features：-
Fixed Inductors datasheet and documents for LMLP06D6M470CTAS
Fixed Inductors Overview
The LMLP06D6M470CTAS is a surface-mount power inductor from the KYOCERA AVX LMLPC series. It features a shielded design with an inductance of 47 uH and a tolerance of 20%. The component has a maximum DC resistance of 0.22 ohms, a saturation current of 1.9 A, and a maximum DC current rating of 1.5 A. Operating within a temperature range of -40 C to +125 C, it utilizes SMD/SMT termination and measures 6 mm x 6 mm x 4.5 mm.
Fixed Inductors Feature Summary
- Shielded magnetic structure minimizes electromagnetic interference
- Robust construction for PCB mounting applications
- High saturation current capability for power circuit stability
Fixed Inductors Applications
- Power supply filtering circuits
- DC-DC converter energy storage
- General-purpose electronic equipment
Fixed Inductors Procurement Notes
Verify the specific suffix CTAS against official manufacturer documentation to confirm cut-tape packaging specifications. Ensure the part number matches the exact electrical parameters required for the target application. Cross-reference the manufacturer's latest datasheet to confirm RoHS compliance status and environmental declarations prior to procurement.
Fixed Inductors Selection Notes
Select this component based on its 47 uH inductance and 1.5 A continuous current rating. Evaluate the 0.22 ohm DC resistance for efficiency requirements. Confirm that the 6 mm x 6 mm footprint fits the PCB layout constraints. Verify thermal performance at the intended operating temperature range up to 125 C.
Fixed Inductors Part Context
This part belongs to the LMLPC series of shielded power inductors manufactured by KYOCERA AVX. The series is designed for surface-mount technology applications requiring reliable magnetic shielding. These components are engineered for use in compact electronic devices where space efficiency and electromagnetic compatibility are critical design factors.
Fixed Inductors Replacement Considerations
Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific saturation current or physical dimensions.
Explore related parts through Inductors, Coils, Chokes, all product categories, ChipApex homepage.
