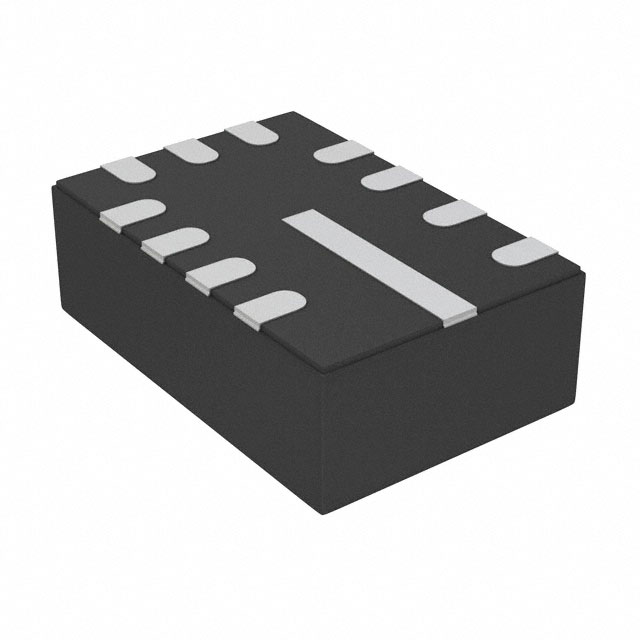

LMR36015ARNXT

$2.25

Description：IC REG BUCK ADJ 1.5A 12VQFN
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d7eb02190264 Category: Voltage Regulators - DC DC Switching Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LMR36015ARNXT is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC REG BUCK ADJ 1.5A 12VQFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LMR36015ARNXT

Description：IC REG BUCK ADJ 1.5A 12VQFN
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：4.2V
Voltage - Input (Max)：60V
Voltage - Output (Min/Fixed)：1V
Voltage - Output (Max)：58V
Current - Output：1.5A
Frequency - Switching：400kHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount, Wettable Flank
Package / Case：12-PowerVFQFN
Supplier Device Package：12-VQFN-HR (3x2)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LMR36015ARNXT

LMR36015ARNXT

Voltage Regulators - DC DC Switching Regulators Overview

The LMR36015ARNXT is a synchronous buck DC/DC converter from Texas Instruments. It operates with an input voltage range of 4.2 V to 60 V and delivers up to 1.5 A output current. The device features a fixed switching frequency of 400 kHz and supports adjustable output voltages from 0 V to 5 V. It includes integrated high-side and low-side power MOSFETs within a compact VQFN-HR-12 package. Quiescent current is specified at 26 uA, and the unit supports operation across temperatures from -40°C to +150°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrates high-side and low-side power MOSFETs for efficient synchronous rectification
Supports wide input voltage ranges up to 60 V with transient tolerance
Provides adjustable output voltage control via external resistor network
Features low quiescent current for improved efficiency in standby modes

Voltage Regulators - DC DC Switching Regulators Applications

Industrial equipment power distribution
Automotive infotainment systems
Point-of-load regulation for microprocessors

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'ARNXT' against official datasheets to confirm pinout and thermal pad configuration. Ensure compatibility with the target PCB footprint for the VQFN-HR-12 package. Confirm moisture sensitivity level handling requirements during assembly. Cross-reference the manufacturer part number directly with Texas Instruments documentation to avoid counterfeit components.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a wide input voltage range up to 60 V is required alongside moderate output currents. The 400 kHz switching frequency allows for smaller passive components compared to lower-frequency alternatives. Consider the VQFN-HR-12 package size constraints and thermal dissipation needs for the application environment.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LMR36015 family of ultra-small synchronous buck converters. The family shares common architectural features but varies in output current capabilities and switching frequencies. The ARNXT variant specifically denotes the adjustable output version packaged in VQFN-HR-12.
