LMR66430MB3RXBRNEP

Voltage Regulators - DC DC Switching Regulators Overview

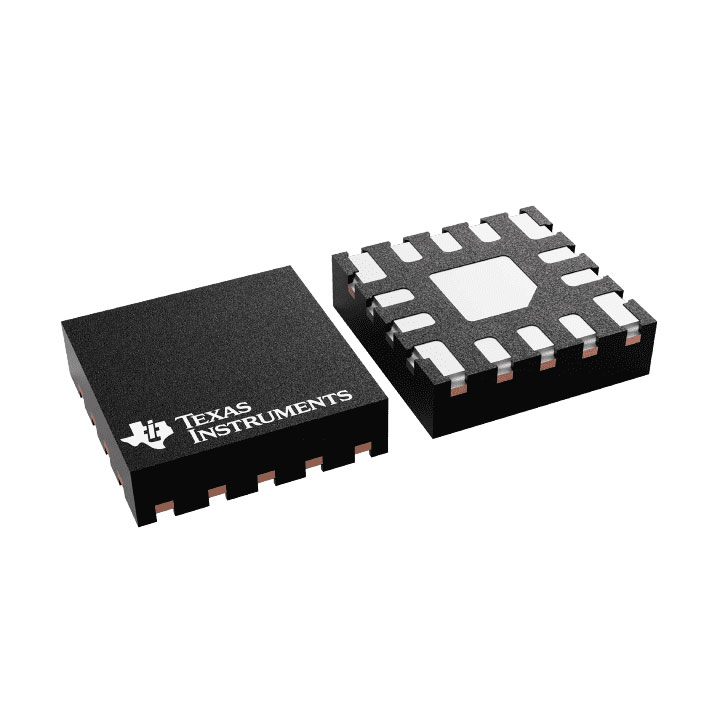

The LMR66430MB3RXBRNEP is a radiation-tolerant synchronous step-down converter from the LMR66430 series, manufactured by Texas Instruments. It operates with an input voltage range of 3 V to 36 V and provides a fixed 3.3 V output at up to 3 A. The device integrates internal switches and supports a switching frequency of 2.2 MHz. It is housed in a VQFN-FCRLF-EP-14 package designed for surface mount installation. The component is qualified for extended temperature operation ranging from -40°C to +125°C and includes shutdown functionality for power management.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Radiation-tolerant design suitable for space applications
• Integrated synchronous buck topology with internal power switches
• Fixed 3.3 V output capability delivering up to 3 A load current
• High-frequency switching operation enabling compact external component sizing

Voltage Regulators - DC DC Switching Regulators Applications

• Spacecraft power distribution systems
• Satellite onboard electronics regulation
• Radiation-hardened embedded computing platforms
• Deep space communication equipment power supplies

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific radiation tolerance levels and total ionizing dose specifications required for your mission profile against the official datasheet. Confirm that the VQFN-FCRLF-EP-14 package thermal characteristics meet your board layout constraints. Ensure compatibility with the LMR66430NEP-EVM evaluation module if initial prototyping is planned. Check for any specific handling requirements related to moisture sensitivity or electrostatic discharge protection during assembly.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a radiation-tolerant solution is mandatory for the target environment. The fixed 3.3 V output simplifies design if this rail is required, eliminating external feedback resistor networks. Consider the 2.2 MHz switching frequency for applications prioritizing small passive component size over maximum efficiency optimization. Verify that the 3 A current rating aligns with peak load demands while accounting for thermal derating within the specified operating temperature range.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LMR66430 family of high-efficiency synchronous buck converters. The NEP suffix indicates qualification for nuclear and space environments, distinguishing it from standard commercial variants. It shares core electrical specifications with non-radiation-hardened counterparts but undergoes additional screening and testing protocols to ensure reliability under ionizing radiation conditions typical in aerospace missions.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Direct replacements must maintain radiation tolerance and similar electrical parameters. Evaluate other Texas Instruments EP-qualified buck converters within the same voltage and current class. Cross-reference pinouts and thermal pad configurations to ensure mechanical compatibility without redesigning the PCB footprint.
