LMV321IDBVR

Instrumentation, Op Amps, Buffer Amps Overview

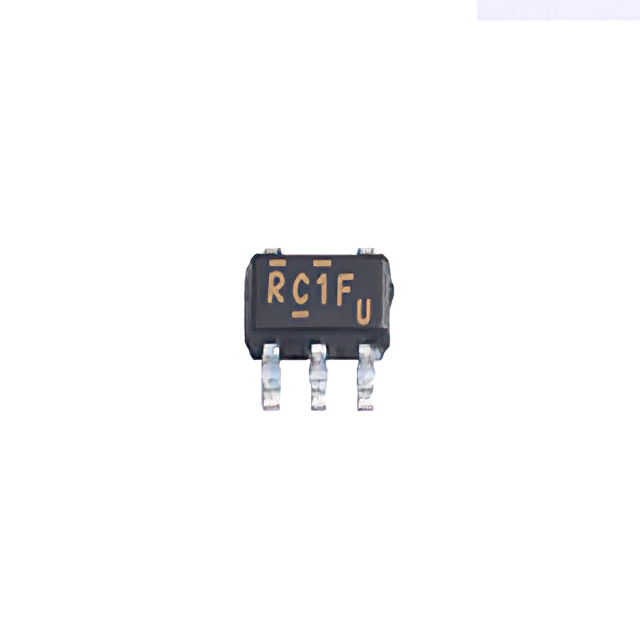

The UMW LMV321IDBVR is a single-channel, low-power operational amplifier featuring rail-to-rail input and output capabilities. It operates within a supply voltage range of 2.1 V to 5.5 V with a typical quiescent current of 45 µA. The device provides a gain-bandwidth product of 1 MHz and an extremely low input bias current of 10 pA (typical). It is housed in a SOT-23-5 surface-mount package.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Rail-to-rail input and output operation for maximum dynamic range
• Extremely low input bias current suitable for high-impedance sources
• Low power consumption optimized for battery-powered applications

Instrumentation, Op Amps, Buffer Amps Applications

• ASIC input and output amplifiers
• Sensor interfaces
• Piezoelectric sensing amplifiers
• Battery-powered equipment
• Audio output stages

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the manufacturer designation as UTD Semiconductor Co., Limited or UMW when sourcing this component. Confirm the specific ordering suffix 'DBVR' corresponds to the SOT-23-5 package and tape-and-reel packaging format. Ensure compatibility with the specified operating temperature range of -25°C to +85°C for your application environment.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component for designs requiring low-voltage operation down to 2.1 V and minimal power draw. The rail-to-rail performance makes it suitable for single-supply systems where signal swing must approach the supply rails. Consider the 1 MHz bandwidth for general-purpose signal conditioning tasks.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the LMV321 series of low-power, rail-to-rail operational amplifiers manufactured by UMT/UTD Semiconductor. The series includes dual (LMV358) and quad (LMV324) variants sharing similar electrical characteristics. The LMV321IDBVR specifically denotes the single-channel version in a compact SOT-23-5 package.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

Cross-reference with other manufacturers offering LMV321-compatible parts such as Texas Instruments or STMicroelectronics. Verify pinout compatibility and ensure that alternative components meet the 2.1 V minimum supply voltage requirement and SOT-23-5 package dimensions.
