LN1871SRTR

LED Indication - Discrete Overview

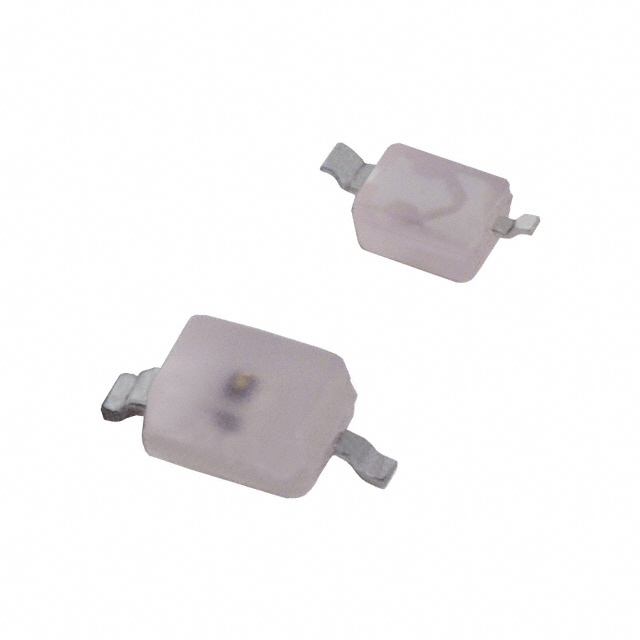

The LN1871SRTR is a discrete orange LED indicator manufactured by Panasonic Electronic Components. It utilizes a surface-mount package with gull-wing terminals, specifically designed for compact circuit board integration. The component operates at a forward voltage of 1.8V and emits an orange diffused light signal. It is classified under the Optoelectronics product line within the LED Indication subcategory. The device is intended for status indication applications in electronic systems requiring reliable visual feedback.

LED Indication - Discrete Feature Summary

• Provides dependable radial voltage supply operation for status signaling
• Features orange diffused light emission for clear visual indication
• Utilizes a compact 2-SMD gull-wing package for surface mounting

LED Indication - Discrete Applications

• Status indication in consumer electronics devices
• Visual signaling in home appliance control panels
• Indicator lights in computer peripheral equipment

LED Indication - Discrete Procurement Notes

Verify the specific part number against official Panasonic documentation to confirm current availability and lifecycle status. Ensure that the ordering suffix matches the required packaging configuration. Cross-reference technical specifications with the latest datasheet to confirm compatibility with design requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component based on its 1.8V forward voltage requirement and orange diffused output characteristics. Confirm that the 2-SMD gull-wing package dimensions fit the designated footprint on the printed circuit board. Evaluate thermal management needs relative to the operating environment and ensure compliance with relevant safety standards for the target application.

LED Indication - Discrete Part Context

This component belongs to Panasonic's discrete LED indication series, designed for general-purpose status signaling. It serves as a visual indicator within optoelectronic assemblies. The part is distinct from through-hole variants and offers surface-mount convenience for automated assembly processes in modern electronics manufacturing.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative components by matching electrical parameters such as forward voltage and luminous intensity, as well as mechanical package dimensions.
