LN289CUQ

LED Indication - Discrete Overview

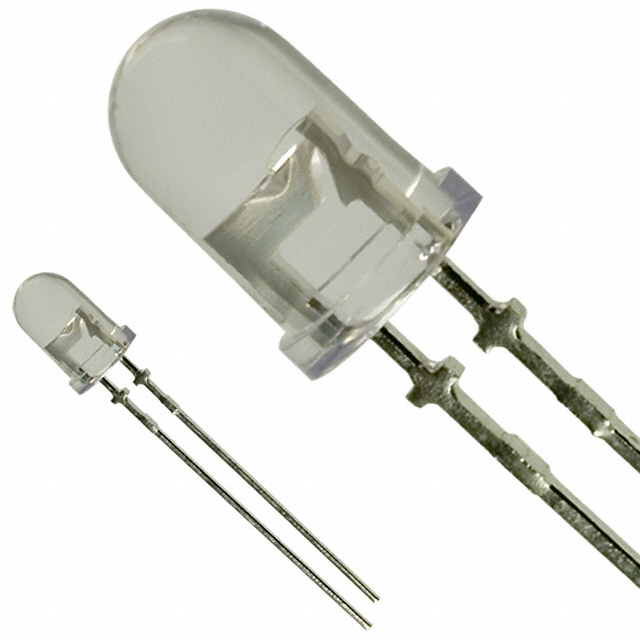

The LN289CUQ is a single-color red LED indicator from Panasonic Electronic Components, utilizing GaAlAs technology for high brightness. It features a clear lens within a T-1 3/4 (5mm) round package designed for through-hole mounting. The component is classified under discrete LED indication products, offering reliable optical performance for visual status signaling in electronic circuits.

LED Indication - Discrete Feature Summary

• Single-color red light emission using GaAlAs material
• Clear lens design for enhanced visibility
• T-1 3/4 (5mm) round package form factor

LED Indication - Discrete Applications

• Visual status indication in electronic equipment
• Panel mount indicators for control systems
• Discrete signal lighting in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and electrical characteristics directly with authorized distributors or Panasonic Electronic Components before procurement. Ensure compatibility with circuit requirements regarding forward voltage and current ratings. Confirm packaging details and lead times through official supply chain channels to align with production schedules.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm through-hole red LED is required for general indication purposes. Consider the GaAlAs technology for superior brightness compared to standard alternatives. Evaluate mechanical fit within the T-1 3/4 package constraints and ensure the clear lens aesthetic meets the design specifications for the target application.

LED Indication - Discrete Part Context

This part belongs to the Panasonic Electronic Components optoelectronics portfolio, specifically within the discrete LED indication subcategory. It represents a standard industrial-grade component used for basic visual feedback in various electronic assemblies, distinct from automotive or specialized display applications.

LED Indication - Discrete Replacement Considerations

Consult official Panasonic documentation for verified substitute part numbers. Cross-reference electrical parameters such as forward voltage and luminous intensity when evaluating generic equivalents to ensure functional parity.
