LNA-20-00102600-30-10P

Overview

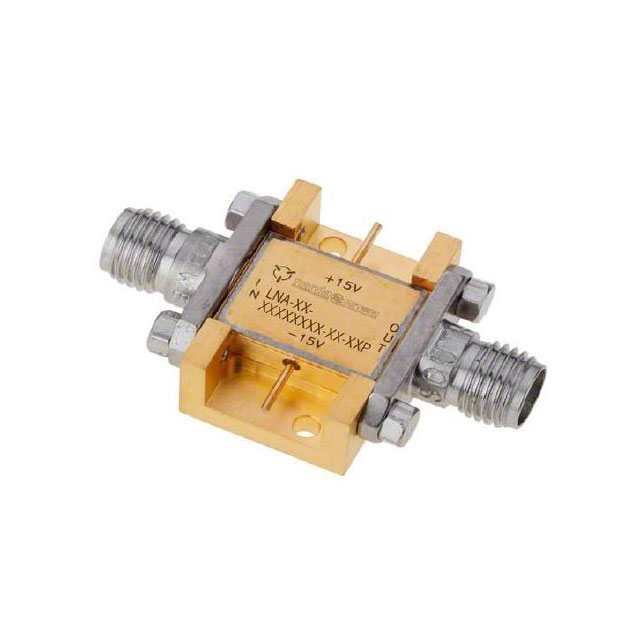

The LNA-20-00102600-30-10P is a wideband low-noise amplifier module manufactured by L3 Narda-MITEQ. It operates across a frequency range of 100 MHz to 26 GHz, providing a nominal gain of 30 dB with a noise figure of 10 dB. The device requires a single +15 VDC supply voltage and draws approximately 250 mA of current. It features SMA connectors for input and output interfaces within a compact module package.

Feature Summary

• Wideband operation covering 100 MHz to 26 GHz
• Integrated low-noise amplification for signal integrity
• Standard 50 Ohm impedance matching for system integration

Applications

• VSAT satellite communication systems
• Broadband test and measurement instrumentation
• Electronic warfare and signal intelligence receivers

Procurement Notes

Verify the specific datasheet version from L3 Narda-MITEQ or authorized distributors to confirm electrical tolerances and pinout configurations. Ensure that the +15 VDC power supply meets the current requirements of 250 mA. Confirm that the SMA connector interface aligns with the host system's RF architecture before finalizing procurement orders.

Selection Notes

Select this component when a wide bandwidth spanning from HF to K-band is required in a single module form factor. The 30 dB gain and 10 dB noise figure make it suitable for applications prioritizing broad spectral coverage over ultra-low noise performance. Consider the module package size and SMA connectivity for PCB layout constraints.

Part Context

This part belongs to the LNA-20 series of low-noise amplifiers produced by L3 Narda-MITEQ, a division specializing in microwave and RF components. The series is known for robust construction and reliability in demanding environments. The manufacturer has a history of serving military, aerospace, and commercial communications sectors with high-performance active components.

Replacement Considerations

Consult official L3 Narda-MITEQ documentation for direct cross-references. Alternative wideband LNAs may require significant circuit redesign due to differences in gain flatness, noise figures, and impedance matching characteristics across the 100 MHz to 26 GHz range.
