LNA-20-04001200-35-20P

$2,758.66

Description：IC RF AMP VSAT 4GHZ-12GHZ MODULE
Series：LNA
Mfr：L3 Narda-MITEQ
Package：Box

SKU:3d5dc2bdb2ff Category: RF Amplifiers Brand: L3 Narda-MITEQ

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC RF AMP VSAT 4GHZ-12GHZ MODULE
Series：LNA
Mfr：L3 Narda-MITEQ
Package：Box
Frequency：4GHz ~ 12GHz
P1dB：20dBm
Gain：20dB
Noise Figure：3.5dB
RF Type：VSAT
Voltage - Supply：15V
Current - Supply：300mA
Test Frequency：4GHz ~ 12GHz
Mounting Type：Connector Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：Module

Download product information

LNA-20-04001200-35-20P

Overview

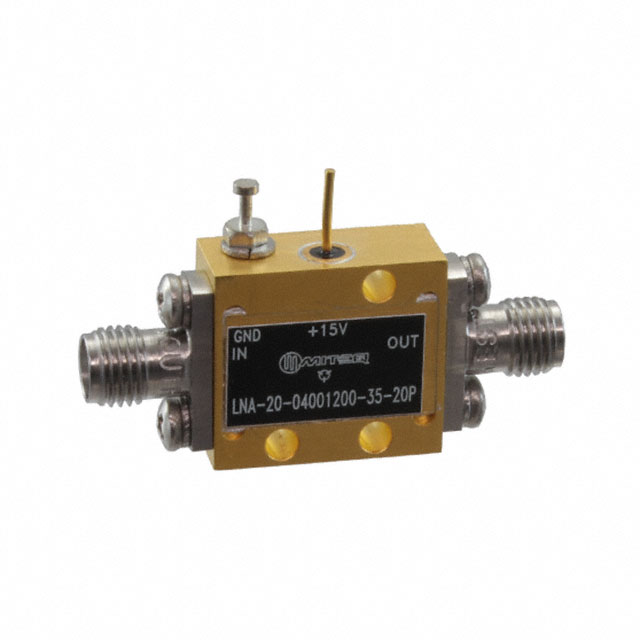

The LNA-20-04001200-35-20P is a low-noise amplifier module manufactured by Amphenol Narda-MITEQ, designed for VSAT applications. It operates within a frequency range of 4GHz to 12GHz. The device provides a gain of 20dB and maintains a noise figure of 3.5dB. It requires a supply voltage of 15V and draws a current of 300mA. The output power at the 1dB compression point (P1dB) is 20dBm. The component utilizes SMA connectors and is installed via connector mounting.

Feature Summary

Provides consistent 20dB gain across the 4GHz to 12GHz bandwidth
Minimizes added noise with a 3.5dB noise figure specification
Designed specifically for VSAT signal enhancement applications

Applications

VSAT communication systems
Satellite ground station receivers
Microwave radio links

Procurement Notes

Verify the complete part number including the suffix -20P to ensure correct SMA connector type and pin configuration. Confirm that the 15V DC supply requirement matches your system design. Check RoHS compliance status if environmental regulations apply to your deployment. Ensure mechanical clearance accommodates the module form factor.

Selection Notes

Select this module when a fixed 20dB gain and 3.5dB noise figure are required for the 4-12GHz band. Compare against other LNA series variants if different gain or frequency ranges are needed. Verify that the 20dBm P1dB output power meets your dynamic range requirements. Ensure compatibility with existing SMA interconnects in the RF chain.

Part Context

This component belongs to the LNA series from Amphenol Narda-MITEQ, which offers various low-noise amplifier modules for microwave frequencies. The series includes models with different gain levels and frequency spans tailored for satellite and wireless infrastructure. This specific model targets the C and Ku bands commonly used in VSAT networks.
