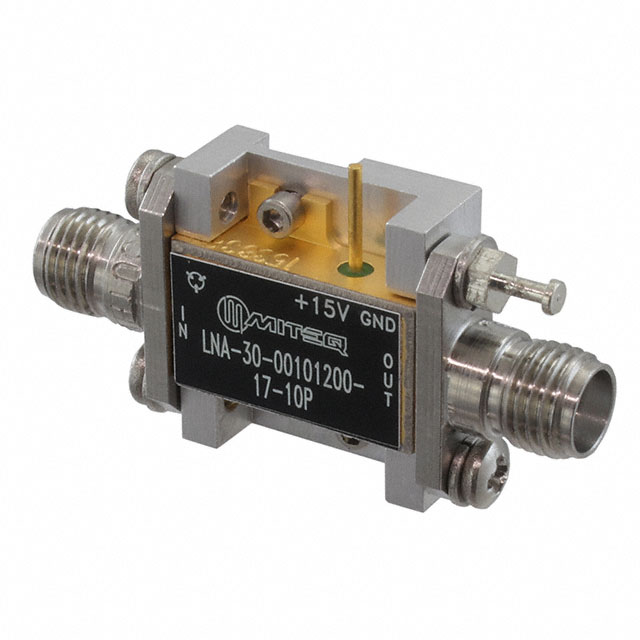

LNA-30-00101200-17-10P

Overview

The LNA-30-00101200-17-10P is a low-noise amplifier module from L3 Narda-MITEQ, designed for the 100 MHz to 12 GHz frequency range. It provides a minimum gain of 30 dB with a typical noise figure of 1.7 dB. The device delivers a P1dB output power of +10 dBm and operates on a +15 VDC supply. Input and output impedances are 50 Ω, with a VSWR of 2:1. It functions within a temperature range of -55 °C to +85 °C and utilizes an SMA connector in a module package.

Feature Summary

• Wideband operation covering 100 MHz to 12 GHz
• High gain performance with low noise figure
• Standard 50 Ω impedance matching for easy integration
• RoHS compliant construction

Applications

• VSAT satellite communication systems
• General RF signal conditioning
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version for the LNA-30-00101200-17-10P to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with +15 VDC power supplies and check for any required thermal management solutions given the operating temperature range. Confirm that the SMA connector type matches the system interface requirements before finalizing procurement.

Selection Notes

Select this component when a wideband amplification solution is required across the L-band through K-band frequencies. It is suitable for applications demanding high gain and low noise figures in a compact module format. Consider the +10 dBm output power limit when designing for higher power requirements or cascaded stages.

Part Context

This model belongs to the LNA series by L3 Narda-MITEQ, specializing in low-noise amplifiers for RF and microwave applications. The series includes various models tailored for different frequency ranges and gain specifications, commonly used in satellite communications and radar systems.

Replacement Considerations

Direct substitutes may include other L3 Narda-MITEQ models within the same series with compatible frequency ranges and pinouts. Verify electrical parameters such as gain flatness and noise figure against the original specification to ensure system performance is maintained.

FAQ

What is the operating frequency range of the LNA-30-00101200-17-10P?

The operating frequency range is 100 MHz to 12 GHz.

What is the typical noise figure for this amplifier?

The typical noise figure is 1.7 dB.
