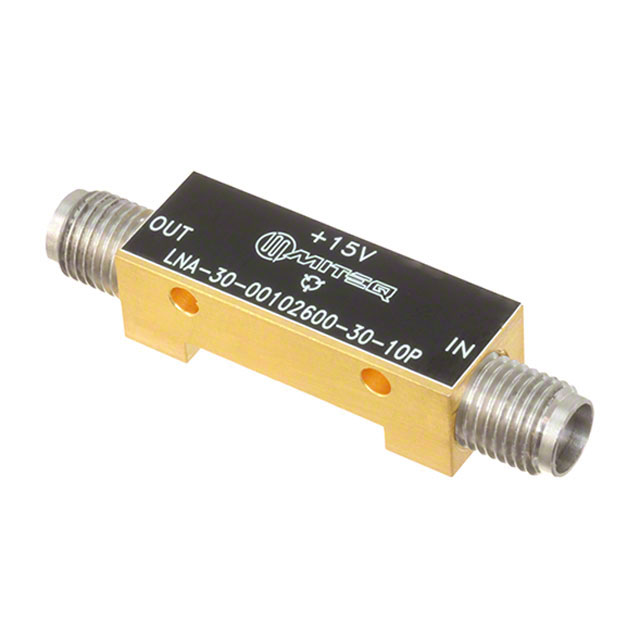

LNA-30-00102600-30-10P

Overview

The LNA-30-00102600-30-10P is a wideband low-power RF amplifier module designed for VSAT applications. It operates within a frequency range of 100MHz to 26GHz. The device provides a gain of 30dB with a noise figure of 3dB. It delivers an output power level (P1dB) of 10dBm. Electrical requirements include a supply voltage of 15V and a current consumption of 300mA. The component utilizes SMA connectors and is housed in a module package.

Feature Summary

• Wideband operation covering 100MHz to 26GHz
• Optimized for VSAT RF applications
• High gain with low noise figure characteristics

Applications

• VSAT communication systems
• Satellite ground station receivers
• Broadband RF signal amplification

Procurement Notes

Verify the specific ordering suffix and connector type against the manufacturer's official datasheet before purchase. Confirm that the 15V supply requirement aligns with system design constraints. Ensure compatibility with SMA interfaces for integration into existing RF chains. Request updated documentation directly from L3 Narda-MITEQ or authorized distributors to validate current production status and technical specifications.

Selection Notes

Select this component when a wideband solution spanning up to 26GHz is required for VSAT environments. The 30dB gain and 3dB noise figure make it suitable for sensitive receiver front-ends. Consider the 15V supply voltage and 300mA current draw during power budgeting. Verify that the 10dBm P1dB output power meets the dynamic range requirements of the downstream components in the signal chain.

Part Context

This part belongs to the LNA series from L3 Narda-MITEQ, a provider of microwave and RF components. The company specializes in high-reliability devices for military and commercial sectors. This specific model represents a modular amplifier solution designed for cost-effective performance in wideband applications. It complements other passive and active components like attenuators and switches within complete RF subsystems.

Replacement Considerations

Consult official substitution guides for direct equivalents. Cross-reference parameters such as frequency range, gain, noise figure, and supply voltage when evaluating alternatives. Verify mechanical footprint and SMA connector compatibility to ensure seamless integration without redesigning the host circuit board or enclosure.

FAQ

What is the operating frequency range of the LNA-30-00102600-30-10P?

The device operates from 100MHz to 26GHz.

What are the electrical supply requirements for this amplifier?

It requires a 15V supply voltage and draws 300mA of current.

Is this amplifier suitable for VSAT applications?

Yes, it is specifically categorized as a VSAT RF type amplifier.
