LNA-30-00104000-58-5P

Overview

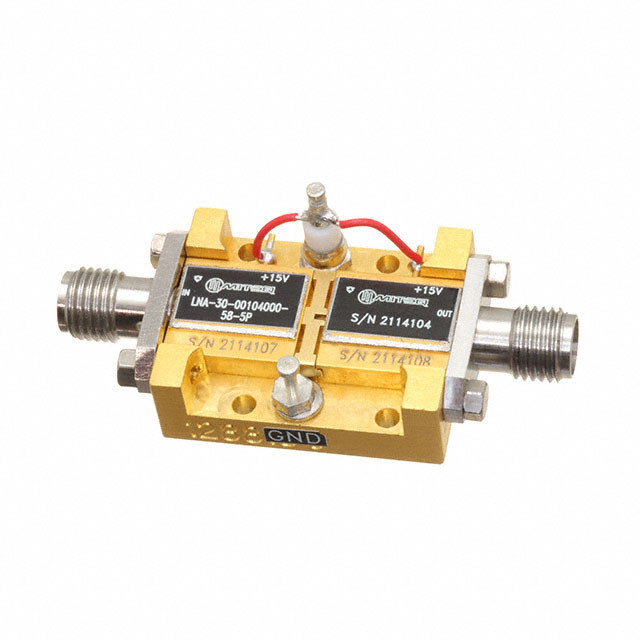

The LNA-30-00104000-58-5P is a wideband low noise amplifier module manufactured by L3 Narda-MITEQ, designed for VSAT applications. It operates across a frequency range of 100 MHz to 40 GHz. The device provides a nominal gain of 30 dB with a typical noise figure of 5.8 dB. It features a P1dB output power of 5 dBm and requires a supply voltage of 15 VDC. The maximum supply current is 350 mA. This component is packaged as a module intended for integration into satellite communication systems requiring high-frequency signal amplification.

Feature Summary

• Wideband operation spanning from 100 MHz to 40 GHz for versatile frequency coverage
• Optimized for VSAT satellite communication system integration
• Provides stable 30 dB gain with controlled noise performance

Applications

• VSAT satellite uplink and downlink signal conditioning
• Wideband RF front-end modules in communication infrastructure
• Test and measurement equipment requiring broad frequency response

Procurement Notes

Verify the specific suffix configuration against the official L3 Narda-MITEQ datasheet to ensure compatibility with your system requirements. Confirm that the 15V DC supply and 350mA current draw are supported by your power architecture. Check for any updated revision notes or pinout changes in the latest documentation before finalizing procurement orders.

Selection Notes

Select this component when a single-module solution covers the 100 MHz to 40 GHz spectrum is required. Consider the 5.8 dB noise figure and 5 dBm P1dB limits relative to your link budget. Ensure the physical module package fits your enclosure constraints. Compare against narrower bandwidth LNAs if cost or size is a primary driver for alternative architectures.

Part Context

This part belongs to the LNA-30 series of low noise amplifiers from L3 Narda-MITEQ. The series includes various models tailored for different frequency ranges and gain specifications within the microwave and millimeter-wave bands. The LNA-30-00104000-58-5P represents the wideband variant covering up to 40 GHz, distinguishing it from lower-frequency counterparts in the same product family.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement should only be considered if an exact match is unavailable, requiring careful re-evaluation of frequency range, gain, and noise figure parameters.
