LNA-30-02000600-09-10P

Overview

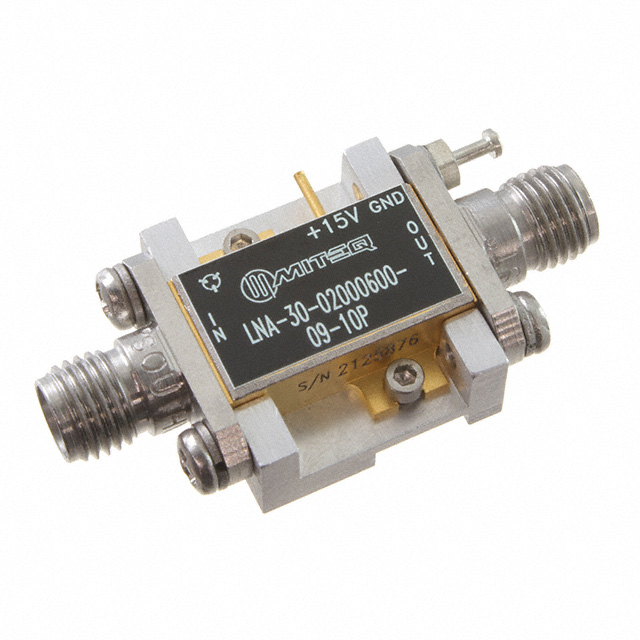

The LNA-30-02000600-09-10P is a low noise amplifier module manufactured by L3 Narda-MITEQ, designed for VSAT applications. It operates within a frequency range of 2 GHz to 6 GHz. The device provides a gain of 30 dB with a noise figure of 0.9 dB. It delivers a P1dB output power of 10 dBm. The unit requires a supply voltage of 15 V and utilizes SMA connectors.

Feature Summary

• Engineered specifically for VSAT communication systems
• Provides high gain with minimal signal degradation
• Integrated module design with standard SMA interfaces

Applications

• VSAT uplink and downlink amplification
• Satellite communication ground stations
• Microwave radio relay systems

Procurement Notes

Verify the exact part number against official L3 Narda-MITEQ documentation to ensure compatibility with system requirements. Confirm that the 15V supply and SMA interface match your existing infrastructure. Check for any specific environmental ratings or mounting requirements listed in the current datasheet before finalizing procurement.

Selection Notes

Select this component when a low noise figure of 0.9 dB is critical for signal integrity in the 2-6 GHz band. Ensure the 10 dBm output power meets the input requirements of subsequent stages. Verify that the 15V DC supply is available and that the SMA connector type aligns with the board layout.

Part Context

This model belongs to the LNA series from L3 Narda-MITEQ, focusing on low noise performance for satellite applications. It is distinct from higher power variants like the LNA-30-08001800-32-20P which covers different frequency ranges. The part is an active component used primarily in RF front-end modules.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing with equivalent products from other manufacturers requires independent verification against specific electrical parameters.
