LNA-30-04001200-20-15P

Overview

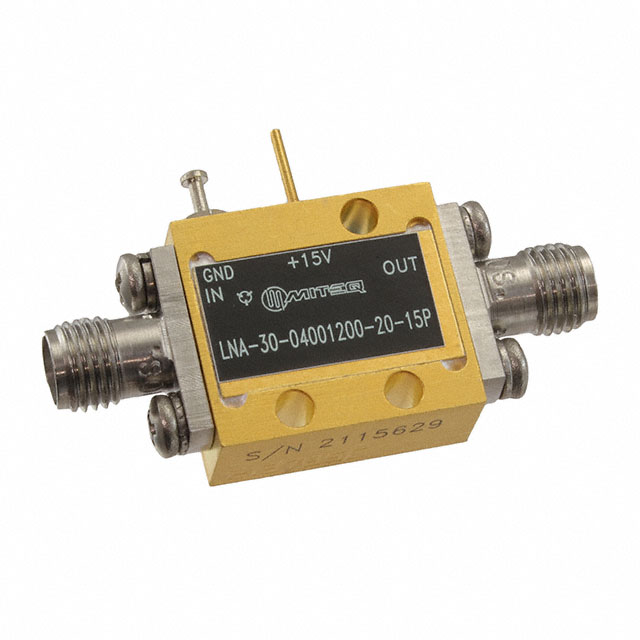

The LNA-30-04001200-20-15P is a low noise amplifier module manufactured by L3 Narda-MITEQ, designed for VSAT applications. It operates within a frequency range of 4 GHz to 12 GHz. The device provides a gain of 30 dB with a typical noise figure of 2 dB. It delivers a P1dB output power of 15 dBm and requires a supply voltage of 15 VDC at a current draw of 350 mA. The component utilizes SMA connectors for mounting and signal interfacing.

Feature Summary

• Provides high-gain amplification suitable for satellite communication systems
• Features low noise characteristics for improved signal integrity
• Utilizes robust connector-based mounting for reliable integration

Applications

• VSAT receiver front ends
• Satellite communication uplink/downlink chains
• Microwave radio systems

Procurement Notes

Verify the specific suffix codes against official L3 Narda-MITEQ documentation to ensure exact electrical matching. Confirm that the SMA connector orientation and pinout align with the system design requirements. Check for any recent product lifecycle updates or obsolescence notices directly from the manufacturer before finalizing procurement plans.

Selection Notes

Select this model when a wideband 4-12 GHz coverage is required with moderate output power. Ensure the system can accommodate the 15 VDC supply requirement and thermal dissipation needs associated with the 350 mA current draw. Compare noise figure specifications against other LNAs in the series if ultra-low noise performance is critical for the application.

Part Context

This component belongs to the LNA series from L3 Narda-MITEQ, a provider of microwave and RF solutions. The brand was formed through the merger of MITEQ and L3's Narda Microwave-East business. The company specializes in durable, high-performance RF components for military and commercial sectors, including amplifiers, switches, and attenuators.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Consider models like LNA-30-04001200-40-25P if higher output power is needed, though noise figures may differ. Verify compatibility with existing SMA interfaces and supply voltages before substituting.
