LNA-30-04001200-35-20P

Overview

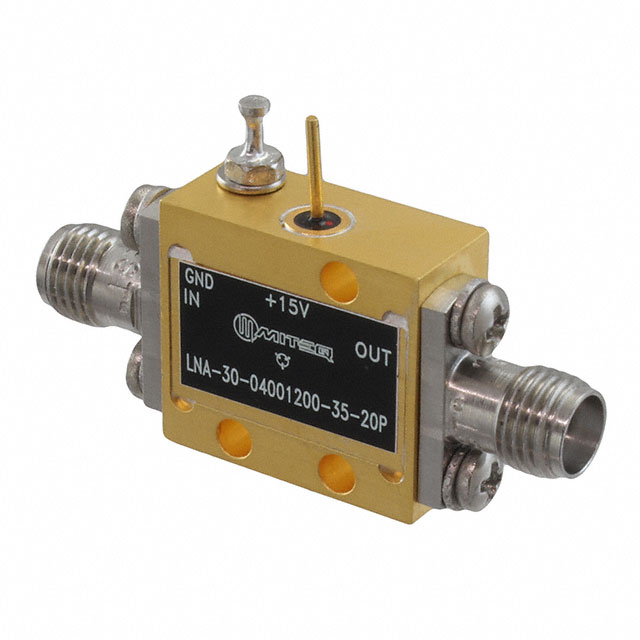

The LNA-30-04001200-35-20P is a low-noise amplifier module manufactured by L3 Narda-MITEQ, designed for VSAT applications. It operates within a frequency range of 4 GHz to 12 GHz. The device provides a nominal gain of 30 dB with a noise figure of 3.5 dB. It requires a 15 V DC supply and draws approximately 350 mA of current. The unit features SMA connectors and is constructed as a shielded module.

Feature Summary

• Provides high-gain amplification suitable for satellite communication links
• Engineered for low-noise performance in demanding RF environments
• Integrated module design simplifies system integration

Applications

• Very Small Aperture Terminal (VSAT) systems
• Satellite communication uplink and downlink chains
• Microwave radio relay equipment

Procurement Notes

Verify the complete part number including the suffix to ensure correct connector type and specification alignment. Confirm voltage requirements match the 15V DC supply standard. Check RoHS compliance status if required by specific project regulations. Ensure SMA interface compatibility with existing PCB or cable assemblies before procurement.

Selection Notes

Select this component when a 30 dB gain and 3.5 dB noise figure are required across the 4-12 GHz band. Consider the 15V supply constraint and 350mA current draw during power budgeting. Evaluate the SMA connector interface against system interconnect standards. Compare thermal dissipation capabilities against enclosure constraints.

Part Context

This module belongs to the LNA series from L3 Narda-MITEQ, which offers various gain and frequency configurations. The series targets VSAT and microwave applications requiring reliable signal conditioning. Other variants in the family may differ in gain, noise figure, or operating frequency ranges while maintaining similar mounting and interface styles.

Replacement Considerations

Direct substitutes include the LNA-30-04001200-40-25P, which shares the same frequency range but offers different gain and P1dB specifications. Verify that any replacement maintains the 15V supply requirement and SMA connector interface to ensure mechanical and electrical compatibility.
