LNA-30-06001800-45-25P

Overview

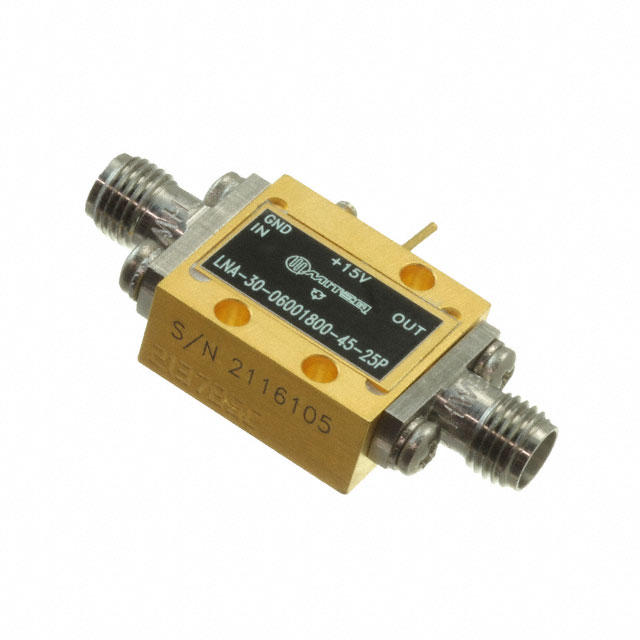

The LNA-30-06001800-45-25P is a low noise amplifier manufactured by Amphenol Narda-MITEQ. It operates within a frequency range of 6 GHz to 18 GHz. The device provides a nominal gain of 30 dB with a P1dB output power of 25 dBm. It requires a 15 VDC supply voltage and functions reliably between -55°C and +85°C.

Feature Summary

• Provides signal amplification in the 6 GHz to 18 GHz frequency band
• Delivers 30 dB nominal gain for weak signal enhancement
• Supports high linearity with 25 dBm P1dB output power

Applications

• VSAT communication systems
• Military radar receivers
• Electronic warfare applications

Procurement Notes

Verify manufacturer part number accuracy against official Amphenol Narda-MITEQ documentation. Confirm specific ordering suffixes match required performance parameters. Ensure environmental ratings align with operational temperature requirements. Validate connector types and interface specifications before integration.

Selection Notes

Select this component for wideband RF applications requiring moderate gain and high output power. Consider the 6 GHz to 18 GHz coverage for versatile spectrum usage. Evaluate thermal management needs due to the specified operating temperature range. Assess system compatibility with the required 15 VDC power supply.

Part Context

This model belongs to the LNA series of low noise amplifiers from Amphenol Narda-MITEQ. The series targets demanding RF environments with robust construction. These amplifiers are designed for reliability in critical communication and defense infrastructure.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
