LNA-40-04001200-35-20P

Overview

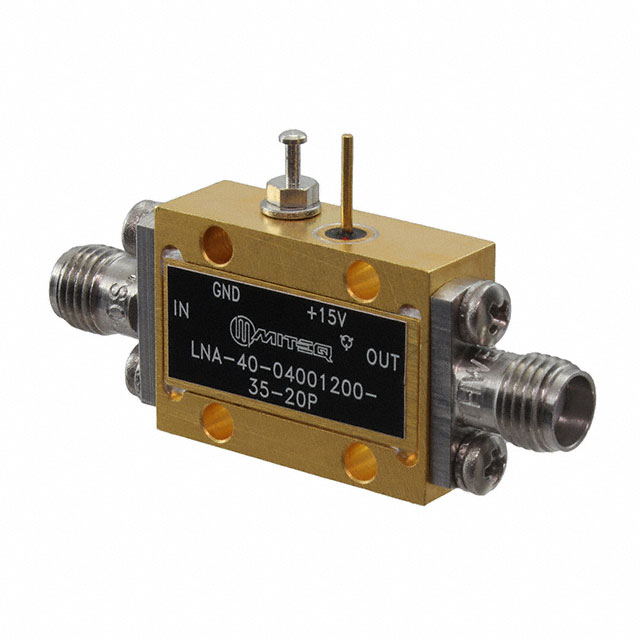

The LNA-40-04001200-35-20P is a low-noise amplifier module from the LNA series by Amphenol Narda-MITEQ. It operates within a frequency range of 4GHz to 12GHz, designed for VSAT applications. The device provides a gain of 40dB with a noise figure of 3.5dB. It features a P1dB output power of 20dBm and requires a 15V supply voltage drawing 400mA. The component is housed in a module package with SMA connectors.

Feature Summary

• High gain performance suitable for sensitive signal reception
• Low noise figure for improved signal-to-noise ratio
• Integrated module design with SMA connectors

Applications

• VSAT communication systems
• Satellite ground station receivers
• Microwave radio links

Procurement Notes

Verify the specific part number against official Amphenol Narda-MITEQ documentation to ensure compatibility with system requirements. Confirm that the 15V DC supply and 400mA current draw are supported by the host power infrastructure. Check for RoHS compliance status if environmental regulations apply to the deployment environment.

Selection Notes

Select this model when high gain and low noise are critical for frequencies between 4GHz and 12GHz. Ensure the application can accommodate the 15V power requirement and thermal management needs associated with the specified current consumption. Compare against other LNA series variants if different gain or noise specifications are required.

Part Context

This component belongs to the LNA series of low-noise amplifiers manufactured by Amphenol Narda-MITEQ (formerly L3 Narda-MITEQ). The series is known for providing reliable RF amplification solutions for satellite and microwave communication systems. The specific model integrates the amplifier circuit into a shielded module format for ease of integration.

Replacement Considerations

Consult official substitution lists from Amphenol Narda-MITEQ for direct replacements. Verify electrical parameters such as gain, noise figure, and operating frequency range match exactly. Ensure mechanical footprint and connector types are compatible before swapping.
