LNA-40-06001800-45-25P

Overview

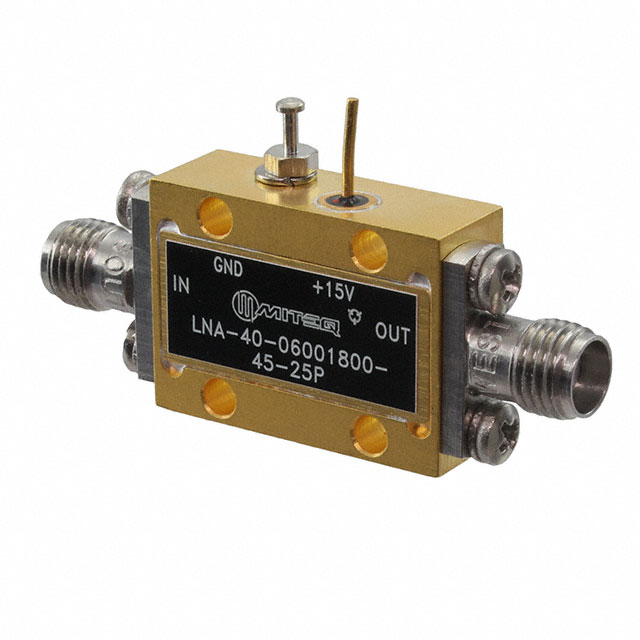

The LNA-40-06001800-45-25P is a low-noise amplifier module designed for VSAT applications. It operates within a frequency range of 6 GHz to 18 GHz. The device provides a gain of 45 dB with a noise figure of 2.5 dB. It requires a supply voltage of 15 V and draws a current of 650 mA. The unit features SMA connectors and utilizes connector mounting.

Feature Summary

• Amplifies weak signals while adding minimal noise for VSAT systems
• Operates across the 6 GHz to 18 GHz frequency spectrum
• Utilizes SMA connectors for interface connectivity

Applications

• VSAT communication systems
• Satellite ground station receivers
• Microwave radio links

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure correct performance specifications. Confirm that the required supply voltage and current ratings match your system design constraints before procurement. Ensure compatibility with SMA connector interfaces.

Selection Notes

Select this component when a high-gain, low-noise amplifier is required for the 6-18 GHz band in VSAT environments. Consider the 15V supply requirement and 650mA current draw during power budgeting. Evaluate thermal management needs due to the module form factor and power consumption levels.

Part Context

This model belongs to the LNA-40 series from L3 Narda-MITEQ, which specializes in RF amplifiers. The series includes various configurations tailored for different frequency ranges and gain requirements. This specific variant targets high-frequency satellite communication applications requiring precise signal amplification.

Replacement Considerations

Consult official substitution lists for verified alternatives. Cross-reference frequency ranges and gain specifications carefully. Ensure mechanical compatibility with existing SMA connector mounts.
