LNA-40-18004000-40-15P
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

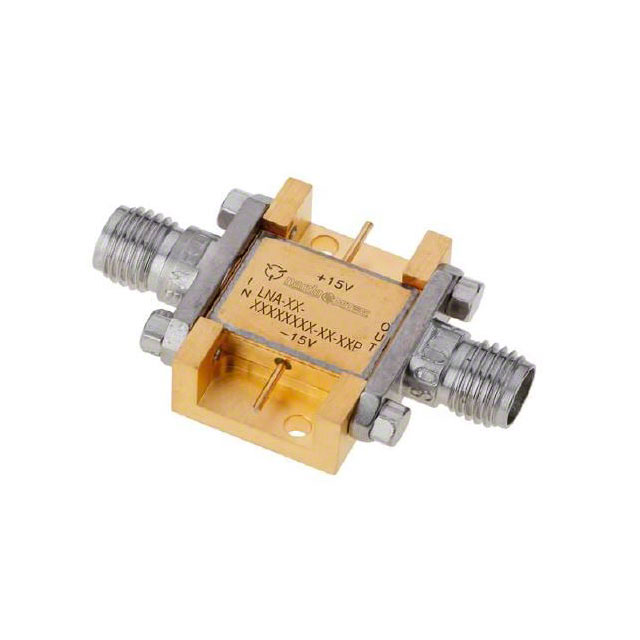

- Description：IC RF AMP VSAT 18GHZ-40GHZ MOD
- Series：LNA
- Mfr：L3 Narda-MITEQ
- Package：Box
- Frequency：18GHz ~ 40GHz
- P1dB：15dBm
- Gain：40dB
- Noise Figure：4dB
- RF Type：VSAT
- Voltage - Supply：15V
- Current - Supply：500mA
- Test Frequency：18GHz ~ 40GHz
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：Module
Download product information
Overview
The LNA-40-18004000-40-15P is a low-noise amplifier module manufactured by L3 Narda-MITEQ, designed for VSAT applications. It operates within a frequency range of 18 GHz to 40 GHz. The device provides a gain of 40 dB with a noise figure of 15 dB. It requires a supply voltage of 15 V and draws a current of 15 mA. The unit is housed in a module package.
Feature Summary
- Provides high-frequency amplification suitable for satellite communication systems
- Engineered for integration into VSAT infrastructure components
- Delivers stable signal processing across the specified millimeter-wave band
Applications
- VSAT network infrastructure
- Satellite communication uplink/downlink modules
- Millimeter-wave test and measurement equipment
Procurement Notes
Verify the specific suffix configuration against official L3 Narda-MITEQ documentation to ensure compatibility with system requirements. Confirm that the 15V supply and 15mA current draw align with available power resources. Check for any updated revision notes or pinout changes in the latest datasheet before finalizing procurement specifications.
Selection Notes
Select this component when a dedicated low-noise amplifier is required for the 18-40 GHz range in VSAT environments. Ensure the system design accommodates the 15V operating voltage and thermal management needs associated with the module form factor. Compare performance metrics against alternative modules if broader bandwidth or different gain profiles are necessary.
Part Context
This part belongs to the LNA series from L3 Narda-MITEQ, which specializes in RF amplifiers for specialized communication sectors. The model number indicates specific frequency and gain characteristics typical of their modular amplifier lineup. It serves as a critical active component in high-frequency signal chains where noise performance and gain stability are paramount.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult L3 Narda-MITEQ directly for cross-reference options or newer generation replacements.
