LNG442YKX

LED Indication - Discrete Overview

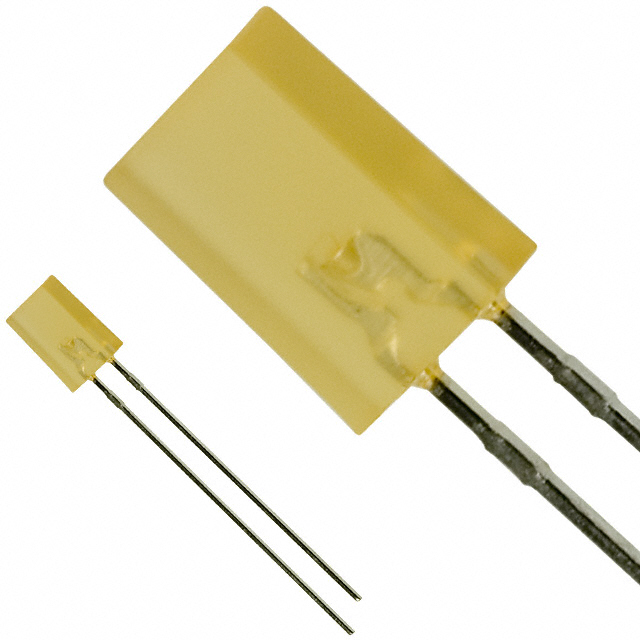

The Panasonic LNG442YKX is an amber square type through-hole LED. It features a diffused lens and operates at a forward current of 25 mA with a maximum forward voltage of 2.8 V. The device has a power dissipation rating of 70 mW and withstands peak pulse currents up to 150 mA. It functions within a temperature range of -25 °C to +85 °C, with a total height of 7.5 mm.

LED Indication - Discrete Feature Summary

• Amber light emission with a diffused lens for broad visibility
• Square form factor designed for through-hole mounting
• Robust construction supporting high peak pulse current loads

LED Indication - Discrete Applications

• Consumer electronics status indicators
• Automotive audio player displays
• Portable device signal lights

LED Indication - Discrete Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Panasonic Electronic Components documentation. Ensure that the specific ordering suffix matches the required optical and electrical characteristics. Confirm compliance with relevant environmental standards prior to integration into final assemblies.

LED Indication - Discrete Selection Notes

Select this component when an amber indicator is required for through-hole PCB layouts. Consider the 2.8 V forward voltage drop and 25 mA operating current for circuit design. Verify spatial constraints regarding the 7.5 mm total height and square package dimensions during mechanical layout planning.

LED Indication - Discrete Part Context

This part belongs to the Panasonic Square Type LED series, which includes various colors such as red, green, and orange. These components are engineered primarily for consumer electronics applications, including mobile phones, laptops, and portable audio players, providing reliable visual signaling in compact devices.

LED Indication - Discrete Replacement Considerations

The conventional part number LN442YP serves as a direct equivalent for the LNG442YKX. Substitution requires confirmation that the legacy part meets identical electrical and mechanical specifications for the target application.
