LNJ167W85RA

LED Indication - Discrete Overview

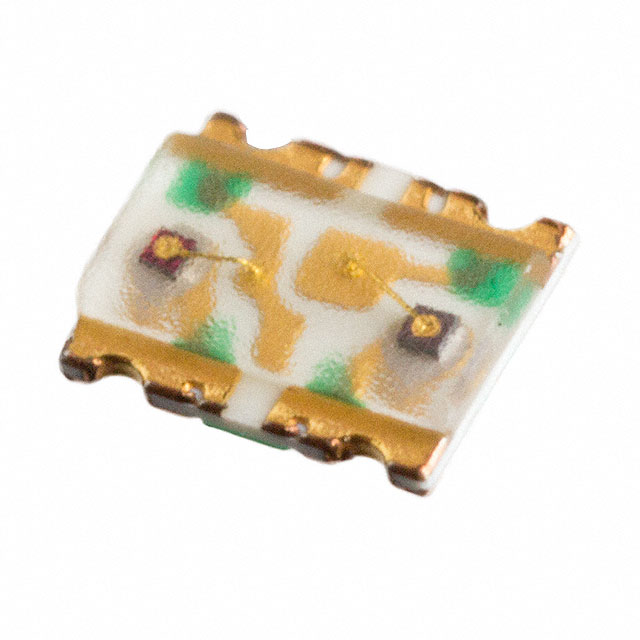

The LNJ167W85RA is a surface-mount bi-color LED from Panasonic Electronic Components, housed in a compact 4-SMD (No Lead) package. It features Red and Blue emission colors with a typical luminous intensity of 15 mcd for both wavelengths. The component operates with a forward voltage of 2.95V for the Blue segment and 1.95V for the Red segment. Designed for visual status indication in space-constrained applications, it offers reliable performance within standard SMT assembly processes.

LED Indication - Discrete Feature Summary

• Compact surface-mount design suitable for space-limited PCB layouts
• Dual-color capability providing distinct Red and Blue visual feedback
• Standardized 4-SMD footprint ensuring compatibility with industry assembly equipment

LED Indication - Discrete Applications

• Visual status indication on electronic control boards
• Space-constrained consumer electronics devices
• Industrial equipment panel indicators

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized Panasonic distributors or certified suppliers. Confirm package integrity and lead condition upon receipt. Ensure storage conditions meet manufacturer specifications to maintain solderability. Cross-reference datasheet parameters against specific application requirements before integration into final designs.

LED Indication - Discrete Selection Notes

Select this component when dual-color indication is required in minimal footprint scenarios. Evaluate forward voltage differences between Red and Blue segments for driver circuit design. Consider thermal management during reflow soldering due to small package size. Verify mechanical clearance against adjacent components on the target PCB layout.

LED Indication - Discrete Part Context

This part belongs to Panasonic's ESS type series of bi-color and tri-color LEDs. These components utilize surface-mount technology for automated assembly. The series provides standardized footprints to facilitate replacement across various electronic product lines requiring discrete visual indicators.

LED Indication - Discrete Replacement Considerations

Check Panasonic's official documentation for current lifecycle status. Identify equivalent bi-color SMD LEDs with matching 4-pin dimensions and electrical characteristics if substitution is necessary.
