LNJ206R5AUX

Description：LED RED CHIP SMD
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR)

SKU:4fd2396ec126 Category: LED Indication - Discrete Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

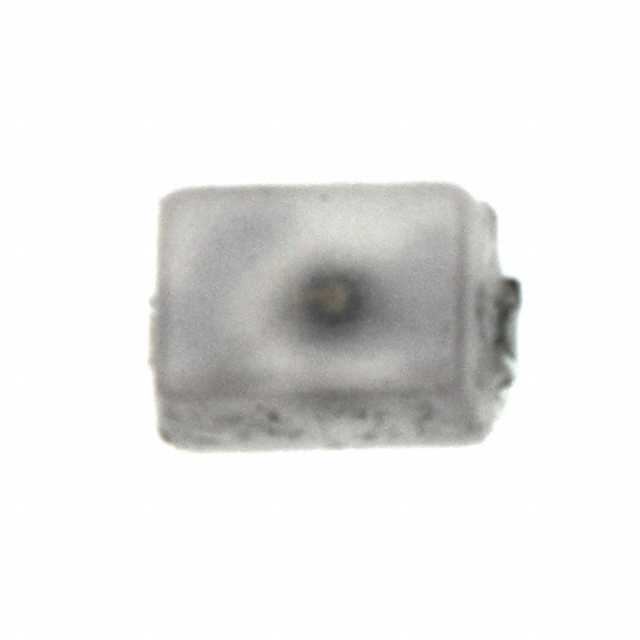

LNJ206R5AUX is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is LED RED CHIP SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LNJ206R5AUX

Description：LED RED CHIP SMD
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR)
Color：Red
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：5mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.70mm x 1.25mm
Voltage - Forward (Vf) (Typ)：1.72V
Current - Test：10mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：660nm
Features：-
Package / Case：2-SMD, J-Lead
Supplier Device Package：Chip LED
Size / Dimension：1.70mm L x 1.25mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LNJ206R5AUX

LNJ206R5AUX

LED Indication - Discrete Overview

The Panasonic LNJ206R5AUX is a red surface-mount LED indicator designed for electronic circuit status visualization. It features a standard configuration with a rectangular lens and flat top, housed in a compact 2-SMD J-lead package measuring 1.70mm in length and 1.25mm in width. The component operates with a typical forward voltage of 1.72V at a test current of 10mA. It emits light at a peak wavelength of 660nm, providing a luminous intensity of 5mcd. The device has a maximum height of 1.10mm and is classified under MSL level 3.

LED Indication - Discrete Feature Summary

Compact SMD form factor suitable for high-density board layouts
Standard red emission with defined optical characteristics
Robust construction with rectangular flat-top lens design

LED Indication - Discrete Applications

Electronic equipment status indication
Power supply unit signaling
Consumer appliance control panels

LED Indication - Discrete Procurement Notes

Verify the obsolete status of this component before integration into new designs. Confirm availability through authorized distributors or secondary markets. Ensure storage conditions adhere to moisture sensitivity level 3 requirements. Validate compatibility with existing assembly processes and soldering profiles. Review latest manufacturer documentation for any handling precautions.

LED Indication - Discrete Selection Notes

Consider the physical dimensions and lead type when designing the PCB footprint. Evaluate thermal management requirements based on the specified forward voltage and test current. Assess optical visibility needs against the provided luminous intensity and wavelength specifications. Ensure the chosen mounting method aligns with the surface-mount J-lead package structure.

LED Indication - Discrete Part Context

This component belongs to the LNJ206 series of discrete LED indicators manufactured by Panasonic Industry. The series offers various color options within a standardized small outline package. These components are engineered for reliable performance in general-purpose electronic applications requiring visual feedback.
