LNJ318C8TRA

LED Indication - Discrete Overview

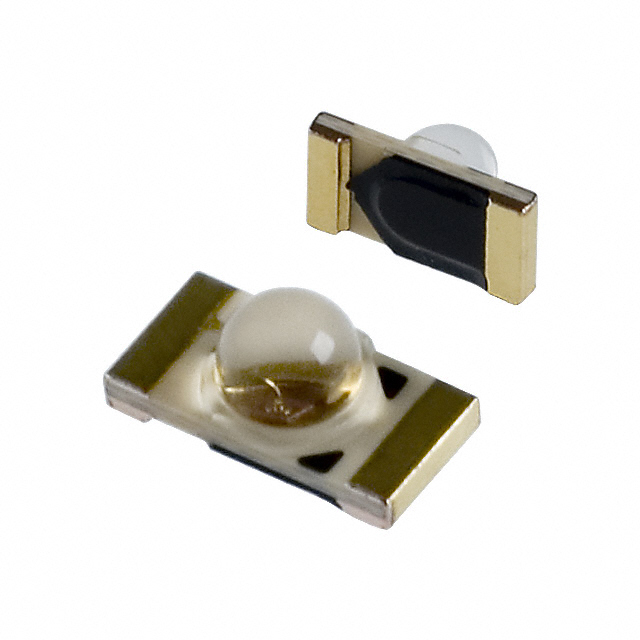

The LNJ318C8TRA is a surface-mount LED from Panasonic, emitting pure green light with a peak wavelength of 555nm. It utilizes a 1206 (3216 Metric) leadless package featuring a round domed lens with a 30° viewing angle. The component measures 3.20mm in length, 1.60mm in width, and 1.10mm in height. Typical forward voltage is 2.03V at a test current of 10mA, producing a brightness rating of 3.5mcd.

LED Indication - Discrete Feature Summary

• Emits pure green light with a 555nm peak wavelength
• Features a 1206 leadless package with a 30° dome lens
• Designed for surface-mount technology applications

LED Indication - Discrete Applications

• General electronic device status indication
• Panel indicator lighting
• Consumer electronics visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm tape-and-reel packaging configuration. Ensure compatibility with standard SMT assembly processes for 1206 components. Cross-reference the part number with official Panasonic databases to validate current production status and availability before procurement planning.

LED Indication - Discrete Selection Notes

Select this component for applications requiring compact green indicators with low power consumption. The 1206 form factor suits space-constrained designs. Verify that the 3.5mcd luminous intensity meets visibility requirements for the intended enclosure and ambient lighting conditions.

LED Indication - Discrete Part Context

This LED belongs to Panasonic's discrete LED indication family, designed for surface-mount integration. It complements other colors in the series, offering standardized dimensions for consistent PCB layout across different product lines while providing reliable optical performance for status monitoring.

LED Indication - Discrete Replacement Considerations

Consult official Panasonic substitution guides for compatible alternatives. Verify electrical parameters and mechanical footprint compatibility when considering cross-brand replacements.
